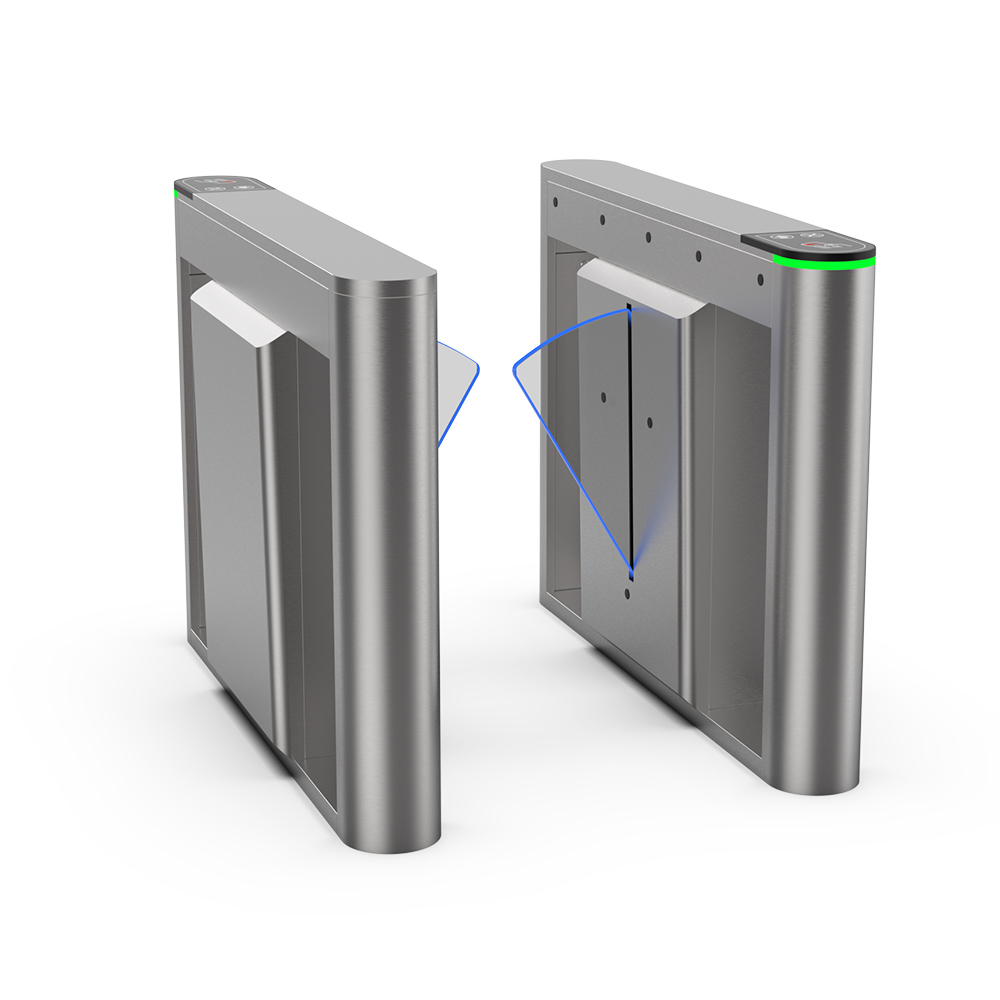

Engineered for demanding transit environments, the FB7B flap barrier combines rugged construction, intelligent drive technology, and a powerful control core for smooth, accurate operation.Its modular build allows fast setup and simple servicing, while support for multiple credentials—including RFID, NFC, QR codes, and facial recognition—ensures rapid throughput in metro stations, airports, and modern commercial complexes.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Two transparent flap arm designed as“Flying Wing" can be optional, more slim and weightless.

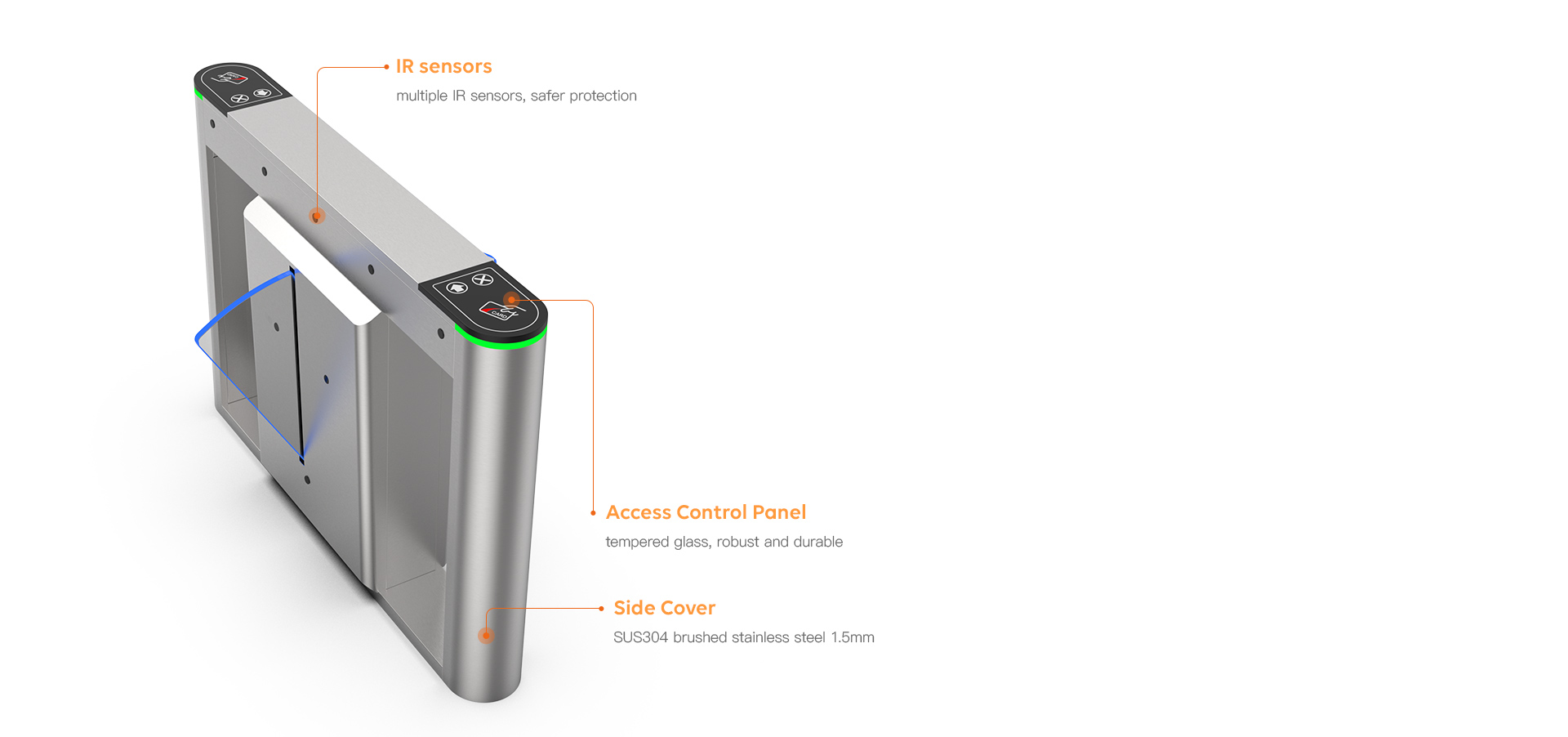

Invisible lR sensors brings high security level protection.
New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.
High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.
Low Consumption
Noiseless
Long Service Life
Steady Operation
MCBF
Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.
RISC System, Small Size & Low Power Consumption
| Parameters | ||||||||||
| Model | FB7B | |||||||||
| Cabinet material | SUS304 brushed stainless steel | |||||||||
| Arm material | Acrylic | |||||||||
| Size | 1400*280*1000 mm | |||||||||
| Voltage | AC220±10%V 50±10%HZ | |||||||||
| Driving motor | DC24V brushless motor | |||||||||
| Infrared sensor | 5 pairs | |||||||||
| Passing LED indicator | Red/Green indicator | |||||||||
| Input Signal | Relay(Dry Contact) | |||||||||
| Direction of passing | Uni-directional/Bi-directional | |||||||||
| Passing width | 550mm | |||||||||
| Working environment | -20℃～70℃,indoor/semi-outdoor | |||||||||
| Relative humidity | ≤90%, no condensation | |||||||||
| Opening speed | Adjustable, fastest 0.5s | |||||||||
| Passing speed | 30-40people/min | |||||||||
| MCBF | 5 million times | |||||||||
| Power | 40W(left/right), 60W(middle) | |||||||||
| IP level | IP54 | |||||||||

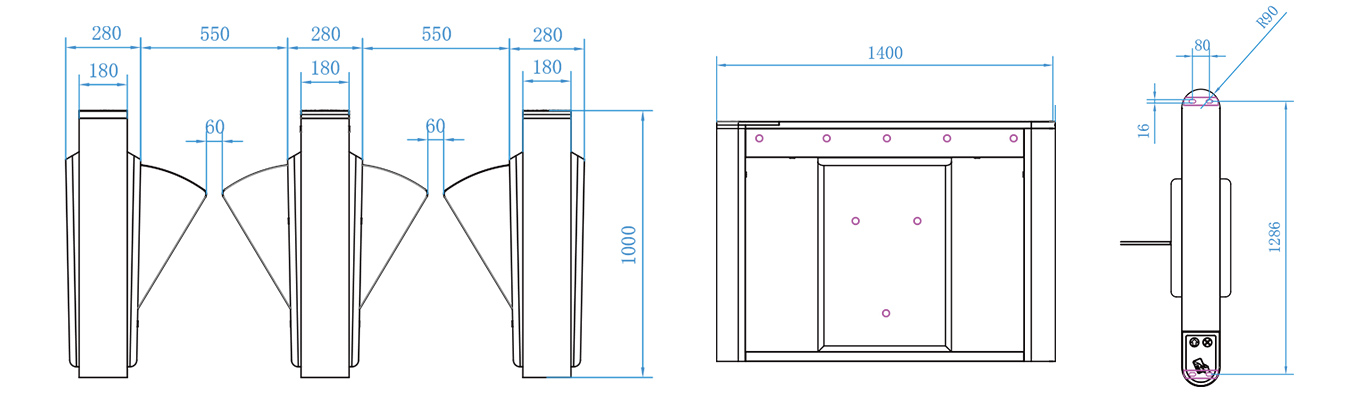

| Dimension | ||||||||||
 | ||||||||||
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
