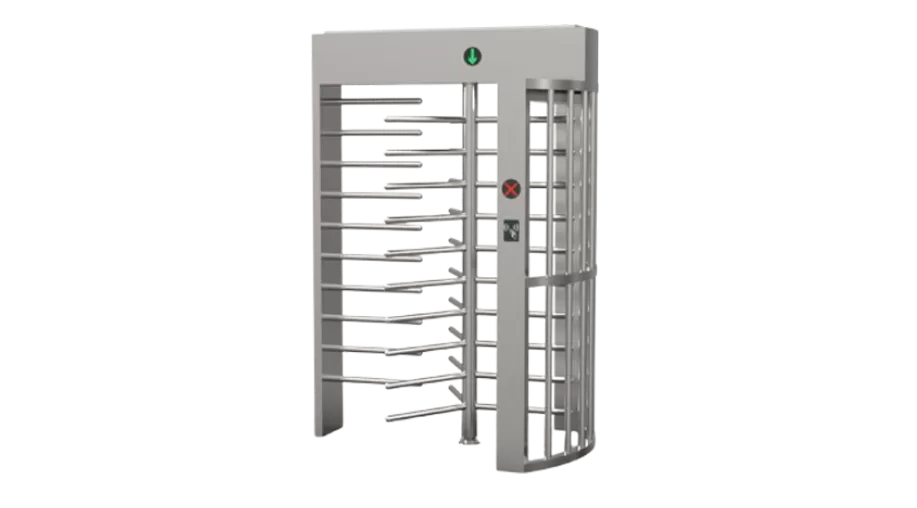

The FT71A-1 is a full height turnstile gate designed for high-security pedestrian access control at construction sites, industrial facilities, transport stations, ports and other restricted entrances. Its floor-to-ceiling rotating structure helps prevent climbing, crawling underneath and unauthorized passage.
Manufactured from SUS304 stainless steel, the FT71A-1 supports indoor and outdoor installation with IP65 protection and an operating temperature range of -15°C to 60°C. The gate provides a passage width of up to 600 mm, processes up to 20 people per minute and supports both 90° and 120° rotor configurations.
Standard dry-contact and RS485 interfaces allow integration with IC/ID card readers, barcode scanners, fingerprint terminals, facial recognition devices and compatible access control systems. Buyers can also compare other full height turnstile models for different lane layouts and project requirements.
| Key Specification | FT71A-1 Configuration |
| Cabinet and rotor material | SUS304 stainless steel |
| Protection rating | IP65 |
| Passage width | Up to 600 mm |
| Throughput | Up to 20 people/min |
| Passing direction | Uni-directional or bi-directional |
| Rotor angle | 90° or 120° |
| Communication | RS485 and dry contact |
| Operating temperature | -15°C to 60°C |
| MCBF | 5 million cycles |
| Installation | Indoor or outdoor |
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Water Proof; Dust Proof; Rust Resistance; Corrosion Resistance.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Oil pressure damper & fre-fighting signal input.
lnter-ftting mechanism with dependent design, support unlocking without power on.
| FULL HEIGHT TURNSTILE FT71A-1 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L1580*W1180*H2310mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Solenoid Valve | |
Comm. Protocol | RS485 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤600mm | |
Passing Speed | 20 people/min | |
Performance | Turnstile Arm Angle | 90° or 120° |
Remote Distance | ≤1200m | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP65 | |
Dimension | ||
| ||
Support personalized customization and configuration.
Anti-intrusion Function
Full height turnstile locks and cannot be pushed without receiving gate open signal.
Multiple Passing Modes
Bi-directional card swiping; One direction card swiping and opposite direction free passing; Bi-directional free passing manually.
Automatically Reset
When not passing within specific time, system will automatically cancel access authority this time.
Uniform Standard Peripheral lnterface
Able to connect to various manage-ment devices and realize remote control and management via PC.
Equipment Stable and Safe
Oil pressure damper with stable running and low noise.

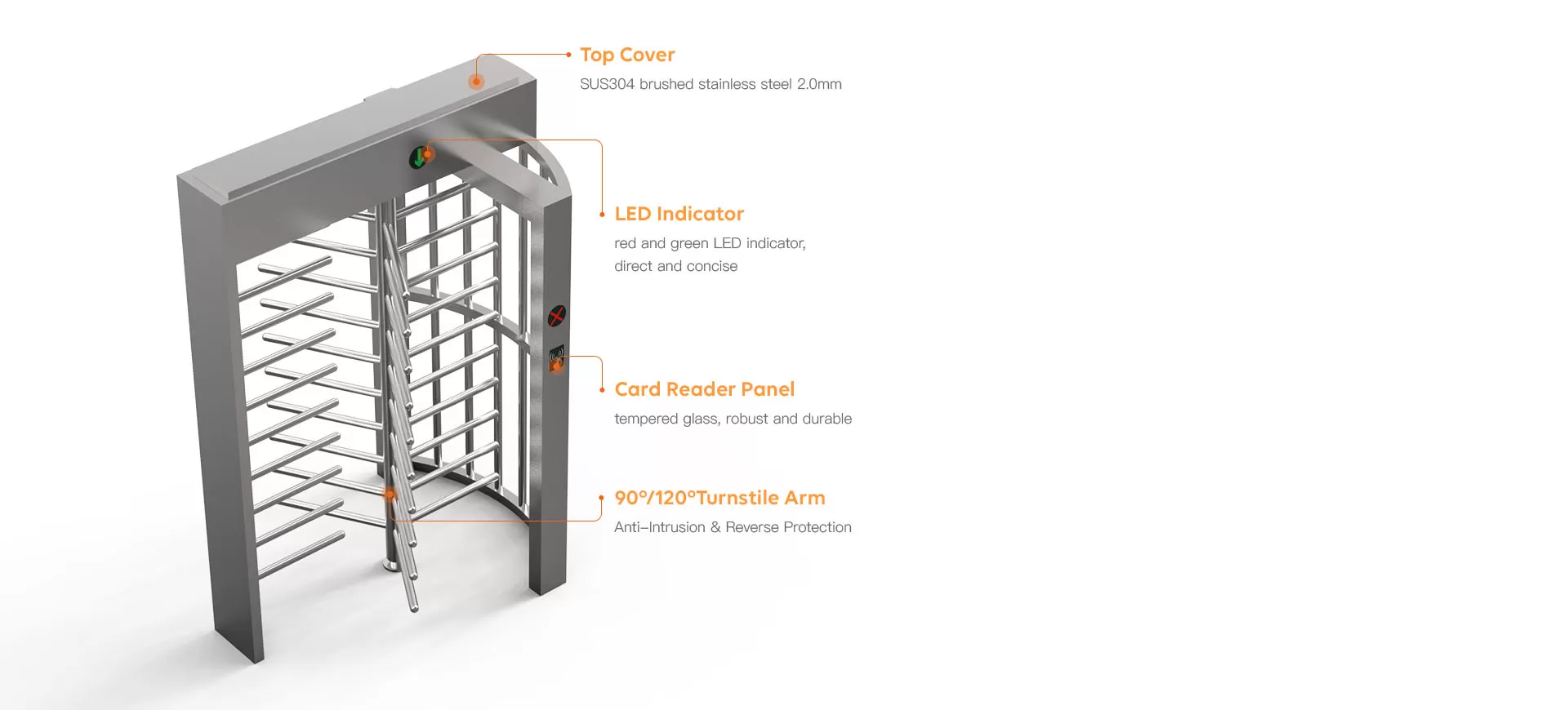

LED Indicator
Green/Red LED indicators guide passing allowed or not.
Intelligent Rotating System
Adopt intelligent rotating system to make turnstile lock/unlock on zero position more accurate and reliable.
Water/Dust Proof
Adopt fine SUS304 stainless steel with water/dust proof, collision resistance and high temp protection.

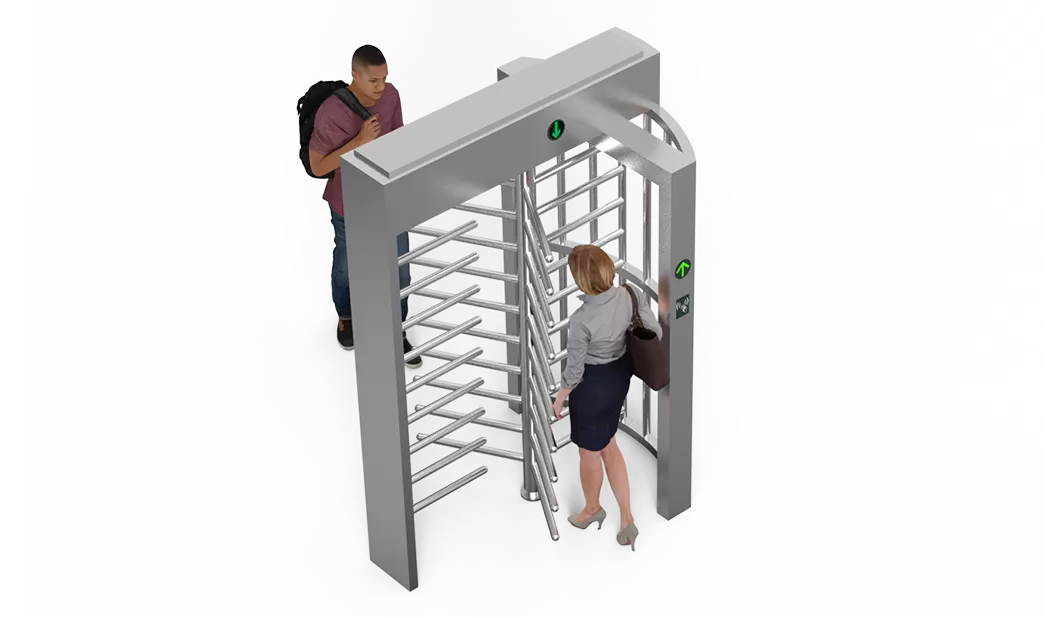

Support uni-directional and bi-directional passing to control pedestrian flow.

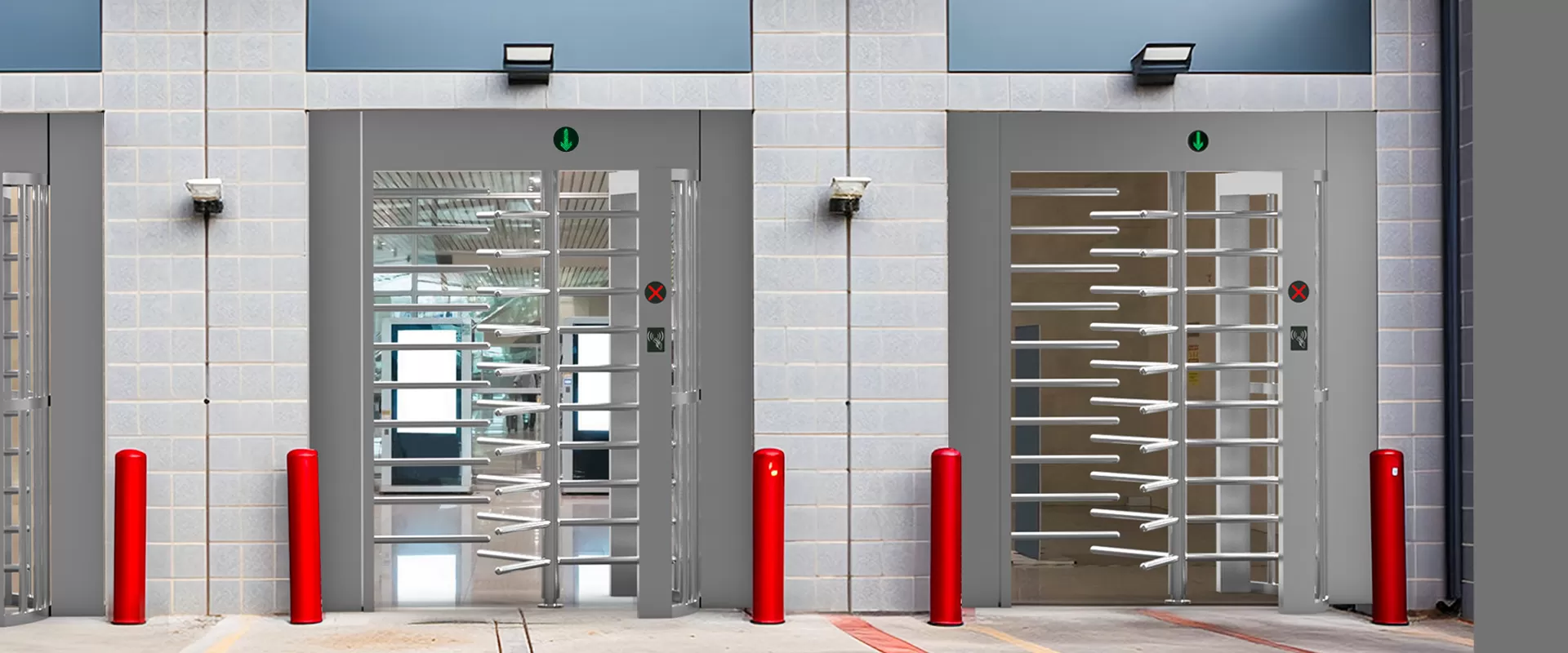

Widely installed in construction site, airport, bus station, railway station, jail, shipping port etc.
Construction Site, Airport, Jail, Railway Station, Shipping Port.
The FT71A-1 full height turnstile is available with 90° and 120° rotor configurations. The main difference is the size of the passage compartment and the balance between security control and user comfort.
| Configuration | Main Features | Recommended Applications |
| 90° rotor | Typically uses four rotor sections, creating a more enclosed passage space and stronger physical separation | Restricted areas, warehouses and high-security entrances |
| 120° rotor | Typically uses three rotor sections, providing a wider compartment and smoother pedestrian movement | Construction sites, factories and general employee entrances |
For projects that do not require a floor-to-ceiling physical barrier, read our tripod turnstile vs full height turnstile comparison to evaluate the differences in security, traffic flow, installation space and cost.
Yes. The FT71A-1 is manufactured from SUS304 stainless steel and has an IP65 protection rating, making it suitable for indoor and outdoor installations. Proper foundation construction, drainage, cable protection and local weather conditions should still be considered before installation.

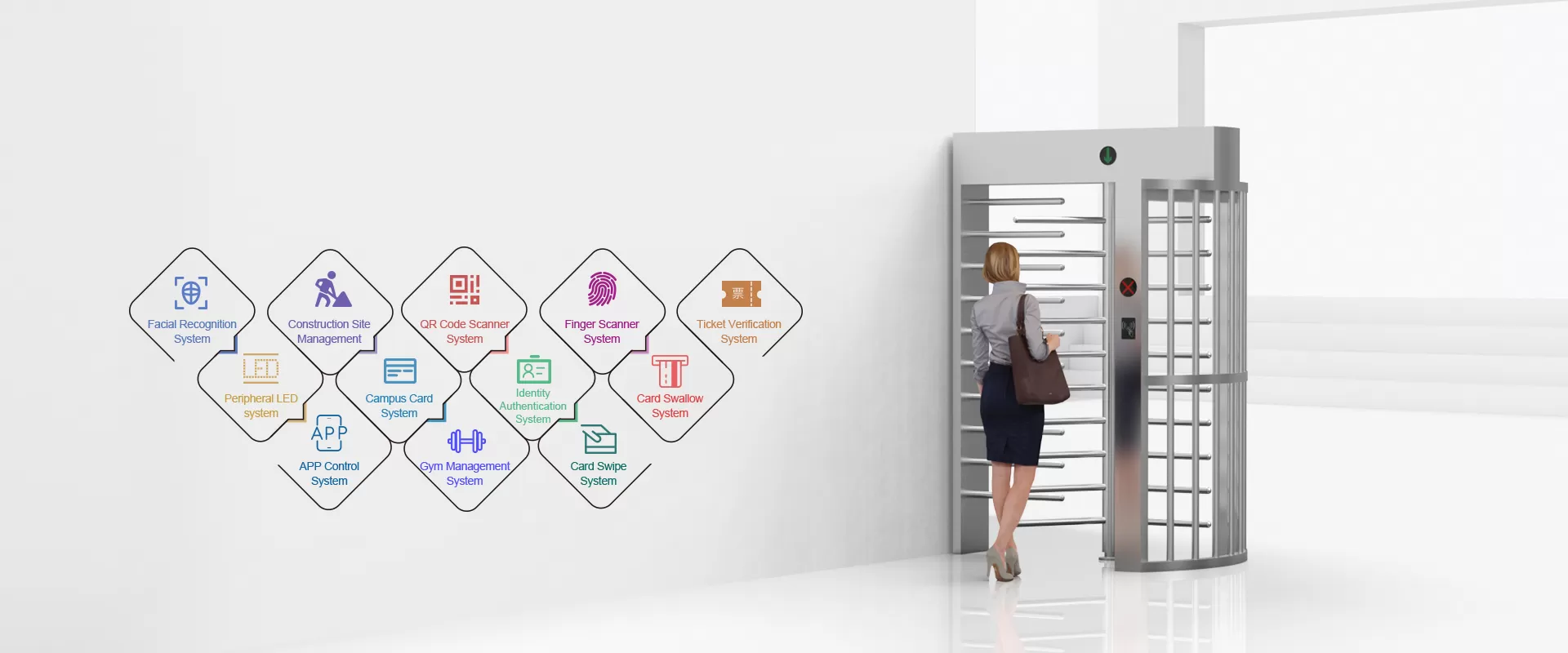

Yes. The turnstile can be integrated with IC/ID card readers, barcode scanners, fingerprint terminals and facial recognition devices. RS485 and dry-contact interfaces allow it to work with compatible third-party access control systems.
The 90° configuration provides a more enclosed passage compartment and stronger physical separation. The 120° configuration offers a wider internal space and more comfortable pedestrian movement. The appropriate option depends on the required security level and the type of users entering the site.
Yes. The FT71A-1 can be configured for uni-directional or bi-directional passage. Entry and exit directions can be controlled according to the project layout, access authorization rules and connected access control system.
The FT71A-1 can support emergency release and fire alarm signal input. The exact operating mode during a power failure, such as unlocking or free rotation, should be confirmed according to the selected control configuration and project safety requirements.
The price depends on the rotor configuration, access control devices, authentication method, customization requirements, order quantity and shipping terms. Providing the installation environment, required passage direction and reader type will help DOOR prepare a more accurate quotation.
