The DR.TD.6380X turnstile combines durability and affordability with its SUS304 stainless steel construction and cost-effective design. Featuring standard electrical interfaces, it seamlessly integrates with barcode cards, ID cards, IC cards, and other read/write devices for flexible access control. This system enables intelligent, automated management of entry and exit points, enhancing efficiency and convenience.
In emergencies, the tripod arm automatically releases during power failure to ensure rapid evacuation. By reducing congestion and streamlining pedestrian flow, the DR.TD.6380X delivers reliable security while maintaining smooth, hassle-free movement in high-traffic areas.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Fine SUS304 stainless steel cabinet case, rust-resistance and durable.
Various read & write devices integration, more intelligent and convenient.
Tripod turnstile arm dropping off automatically with power off to facilitate people evacuation.

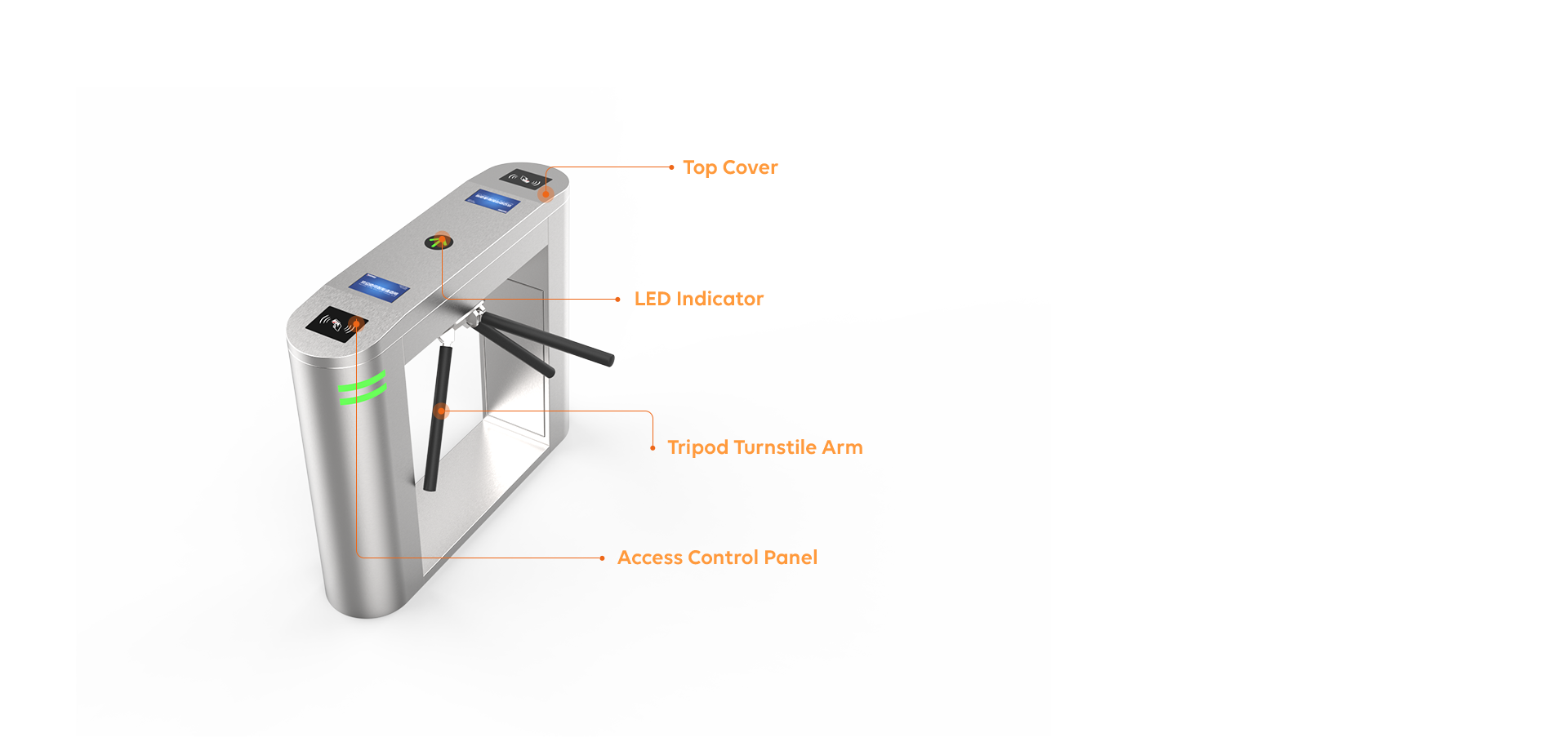

LED indicator function: green arrow and red cross display passing allowed or not.
Tripod turnstile arm: support arm dropping off automatically with power off for pedestrian evacuation.
Various electrical interface: realize RS485 remote control.
| TRIPOD TURNSTILE DR.TD.6380X | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L1200*W280*H1000mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Solenoid Valve | |
Comm. Protocol | RS485 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤550mm | |
Passing Speed | 20 people/min (IC card) | |
Performance | Gate Open Speed | Fastest 1.5s |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 3 Million Times | |
Noise | ＜50dB | |
IP Level | IP54 | |

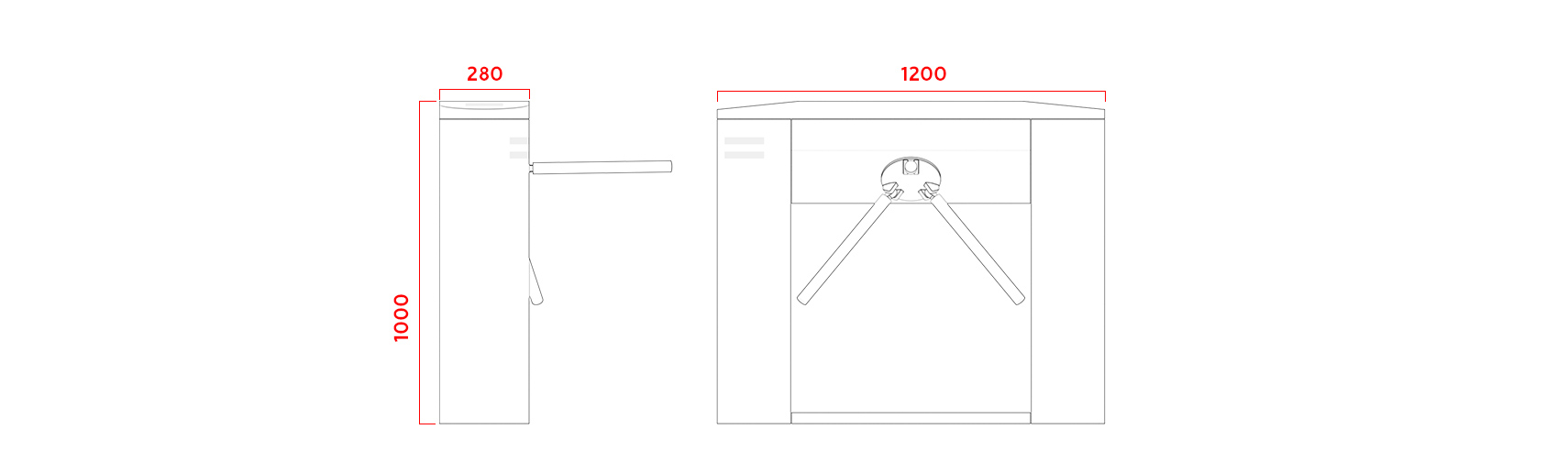

Dimension | ||
| ||
Support uni-directional and bi-directional passing to control pedestrian flow.
Suitable for station, port, travel spot exit and entrance.
Suitable for library, museum, stadium, theater etc ticket entrance.
Suitable for particular passage control.
Suitable for community, factory, office building etc access control area.
