Name: DR.TD.6656
Brand: Shenzhen Door Intelligent Control Technology Co., LTD.

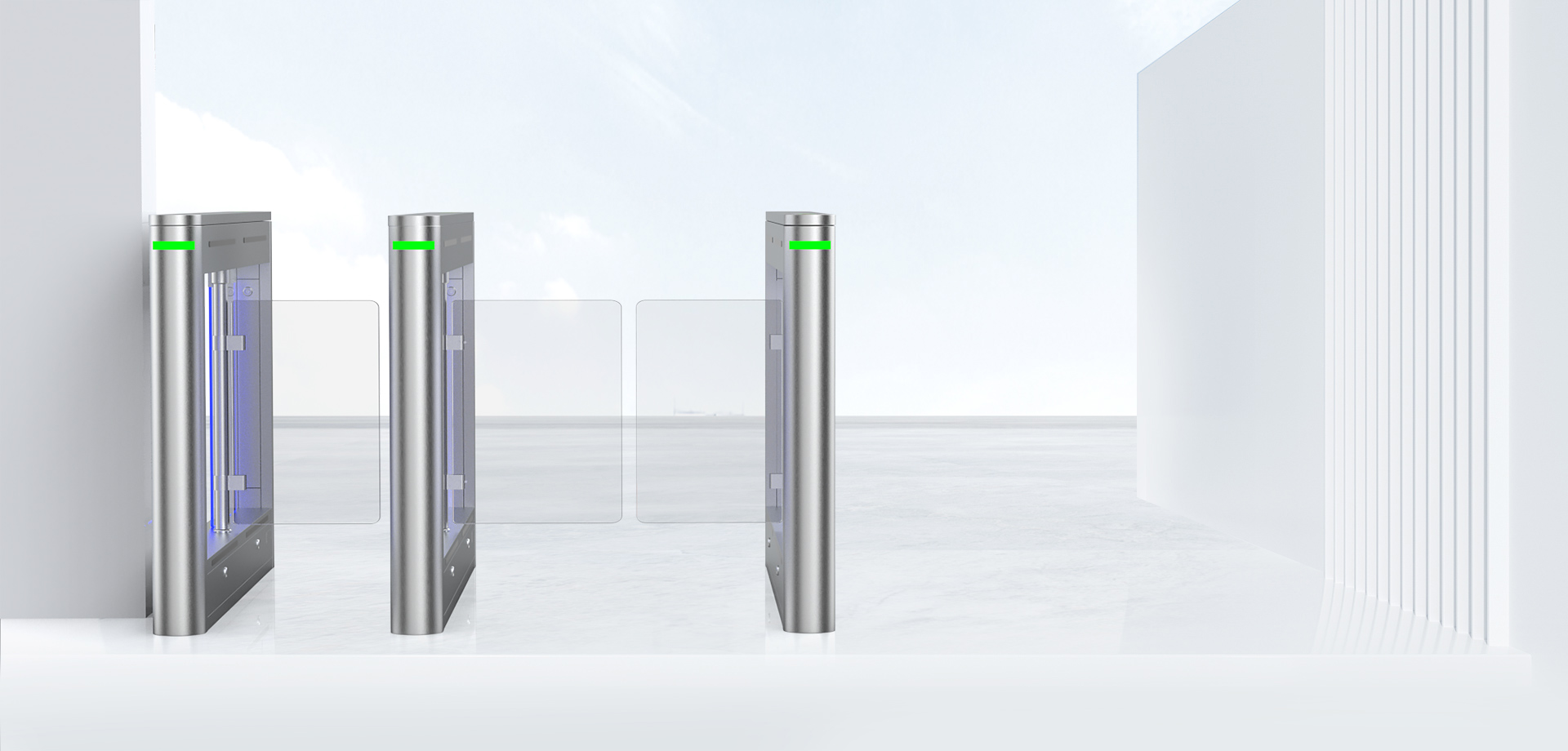

The DR.TD.6656 delivers an ideal space-efficient access control solution, featuring a sleek, minimalist design perfectly suited for confined or narrow installations. Its two ultra-thin transparent swing panels create a lightweight, unobtrusive visual profile while maintaining robustness. Powered by a high-precision servo drive system and enhanced with intelligent algorithm control, it ensures top-tier security without sacrificing speed. The seamless fusion of aesthetic elegance and mechanical precision guarantees smooth, effortless pedestrian flow, making it the optimal choice for high-traffic yet compact environments.

lndustrial CNC Appearance Design

Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.

Brushed sus304 stainless steel to enhance the stability performance.

Two transparent swing panels are symmetrical and appears slim and weightless.

Invisible lR sensors brings high security level protection.

Steel Laser Cutting

CNC bending

Corrosion Resistance

Abrasion Resistance

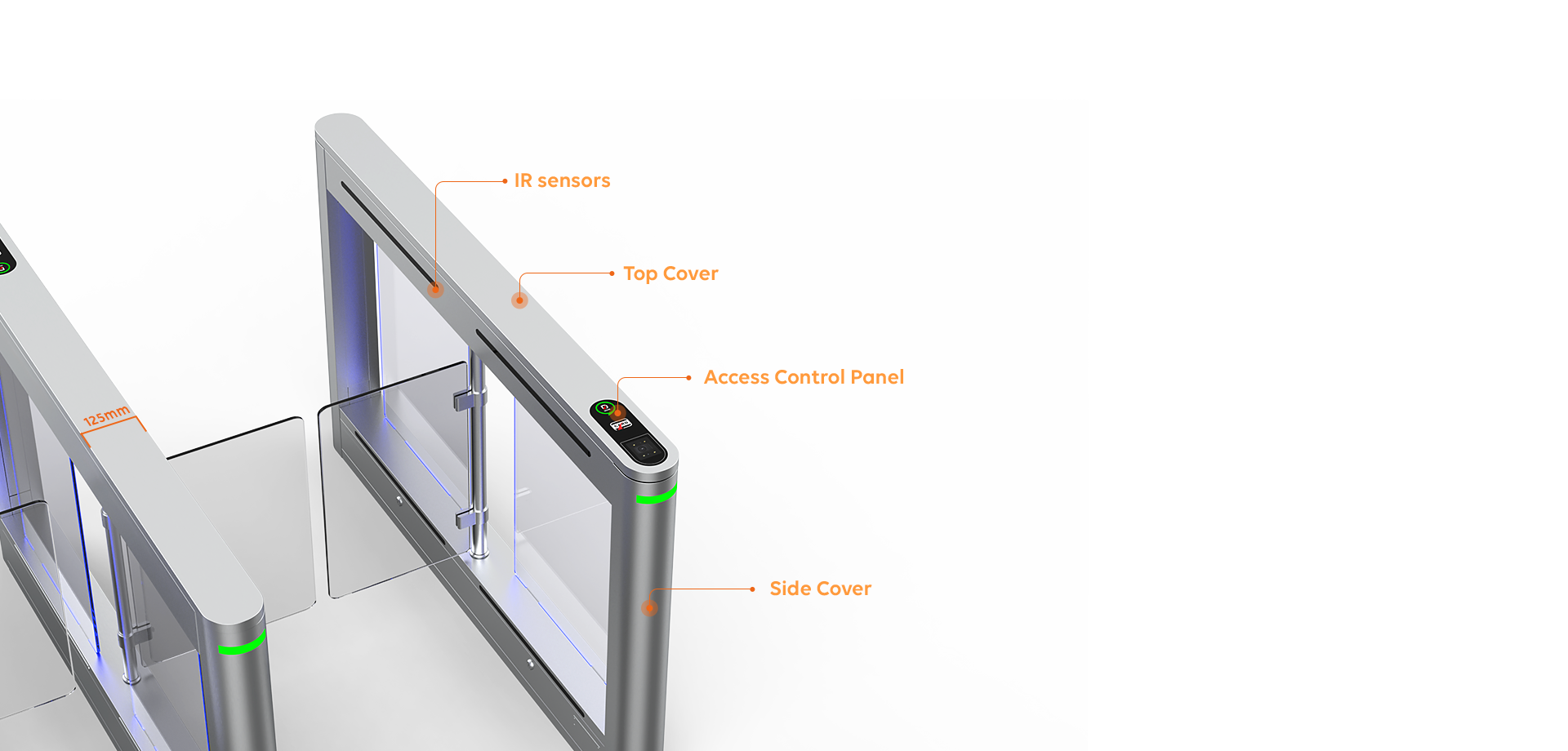

User-friendly Detail lntegration

Fine material to enhance the stablility performance

precise optical element to implement high security protection

subtly concealed guidance to make access control more effortless

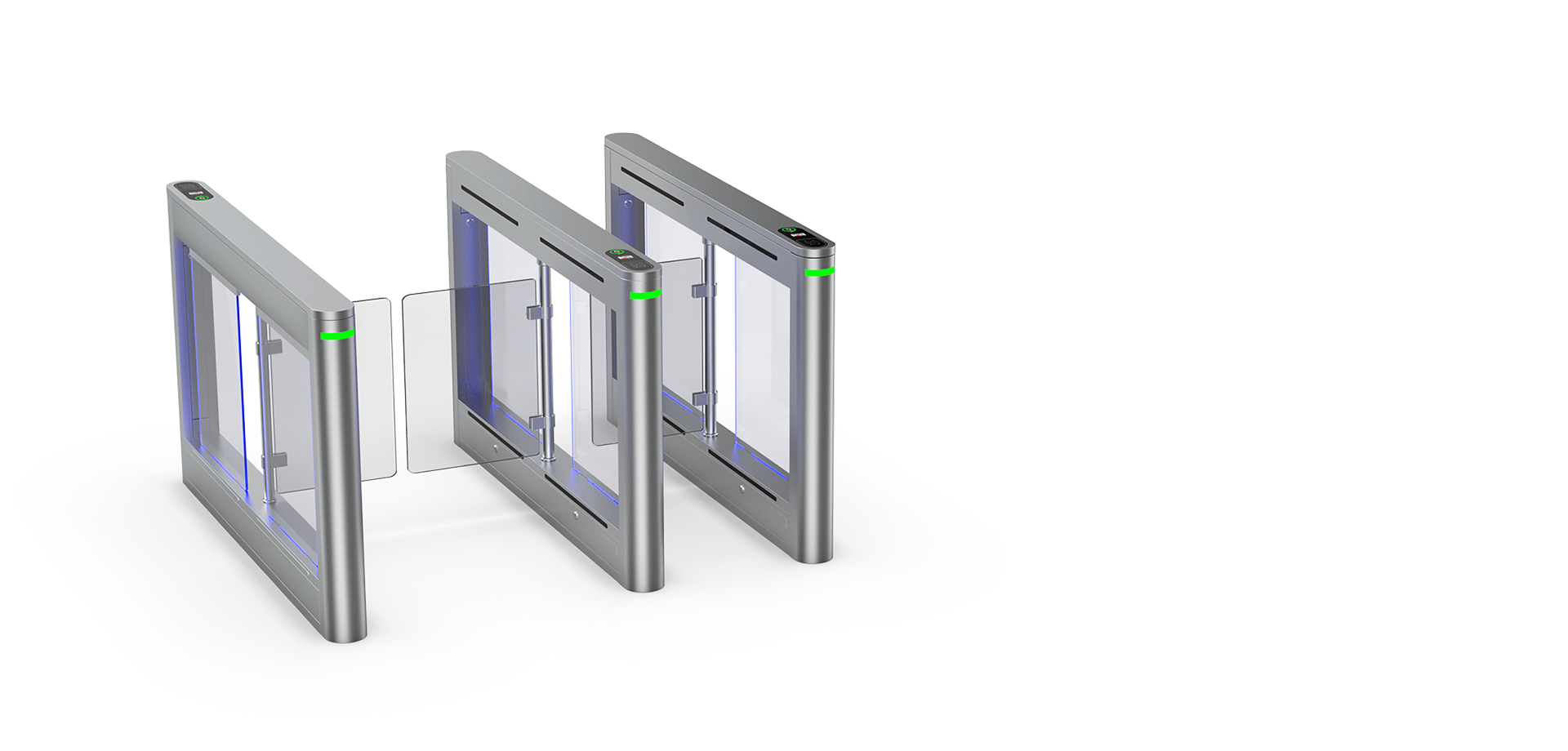

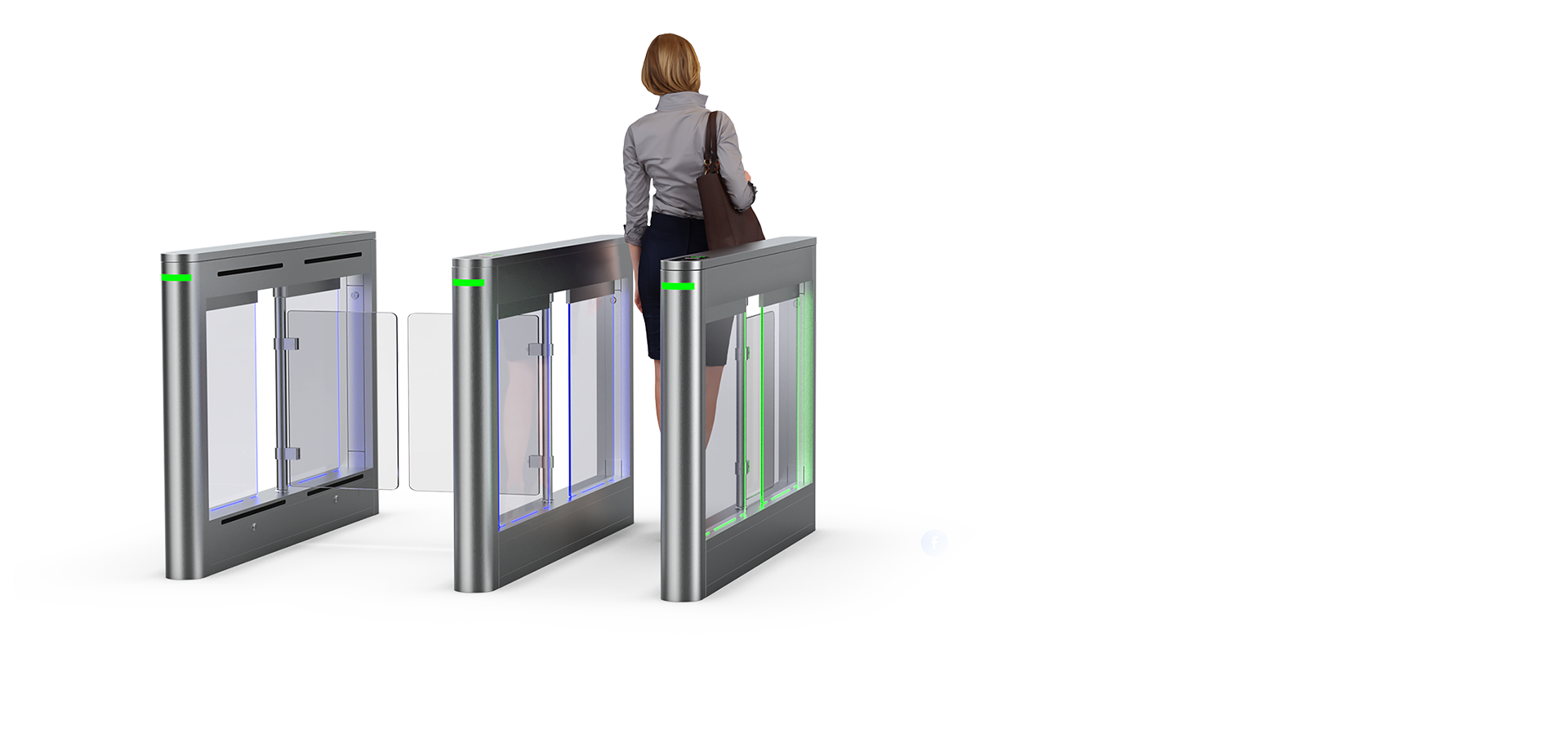

Optional Passage Width and Futuristic Lighting

Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).

Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.

Optional Passage Width and Futuristic Lighting

New Generation of BLDC Drive Unit and Encoder

New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.

High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.

Low Consumption

Noiseless

Long Service Life

Steady Operation

≥5million times certifed

MCBF

Ultra-Strong Chip with High Process Speed

Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.

32 Bit ARM Processor, Low Consumption & Powerful Function;

Multi-core Structure, Strong Process Ability & Fast Response Speed;

RISC system, Small Size & Low Power Consumption.

Details of DR.TD.6656

SWING GATE DR.TD.6656
Physical Para.	Cabinet Material	SUS304 Stainless Steel
	Swing Panel Material	PMMA Acrylics/Plexiglass
	Product Dimension	L1600W125H1000mm
	IR Sensor	8 pairs
Electric Para.	Power Supply	AC220±10%V, 50±10%Hz
	Drive Motor	DC24V BLDC Motor
	Power	35W
	Comm. Protocol	Level Type/Pulse/RS485/RS232
	Input Interface	Relay(Dry Contact)
Passing Info.	Passage Indicator	Red/Green indicator+ Blue LED light strips
	Passing Direction	Uni-directional/Bi-directional
	Passage Width	600~1200mm, adjustable
	Passing Speed	30~40 people/min
Performance	Gate Open Speed	Fastest 0.5s, adjustable
	Gate Open Angle	90°±5°
	Positioning Method	Motor+Encoder
Extras	Working Environment	Indoor/Outdoor, -20℃~70℃
	Relative Humidity	≤90%, No Condensation
	MCBF	5 Million Times
	Noise	＜50dB
	IP Level	IP55

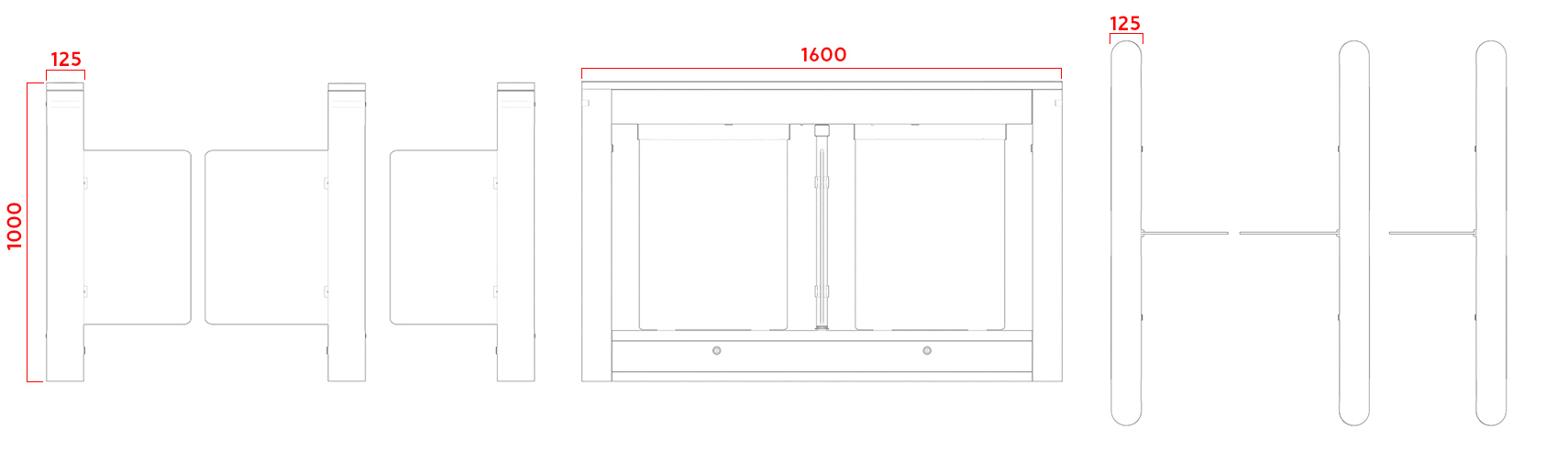

Dimension
