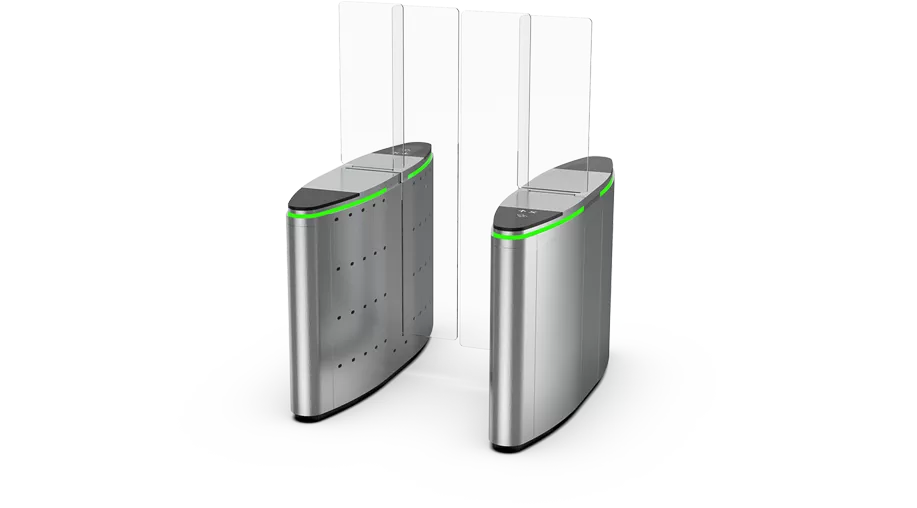

DR.TD.6992 Sliding Barrier Gate combines a sleek stainless steel cabinet with transparent sliding panels for a modern aesthetic. Powered by a precision servo drive and AI algorithm, it offers adjustable passage width to accommodate diverse entry/exit requirements. Equipped with multi-zone optical sensors and advanced anti-tailgating security, it ensures contactless, high-security access control—ideal for high-traffic venues like metro stations, airports, stadiums, and smart buildings.

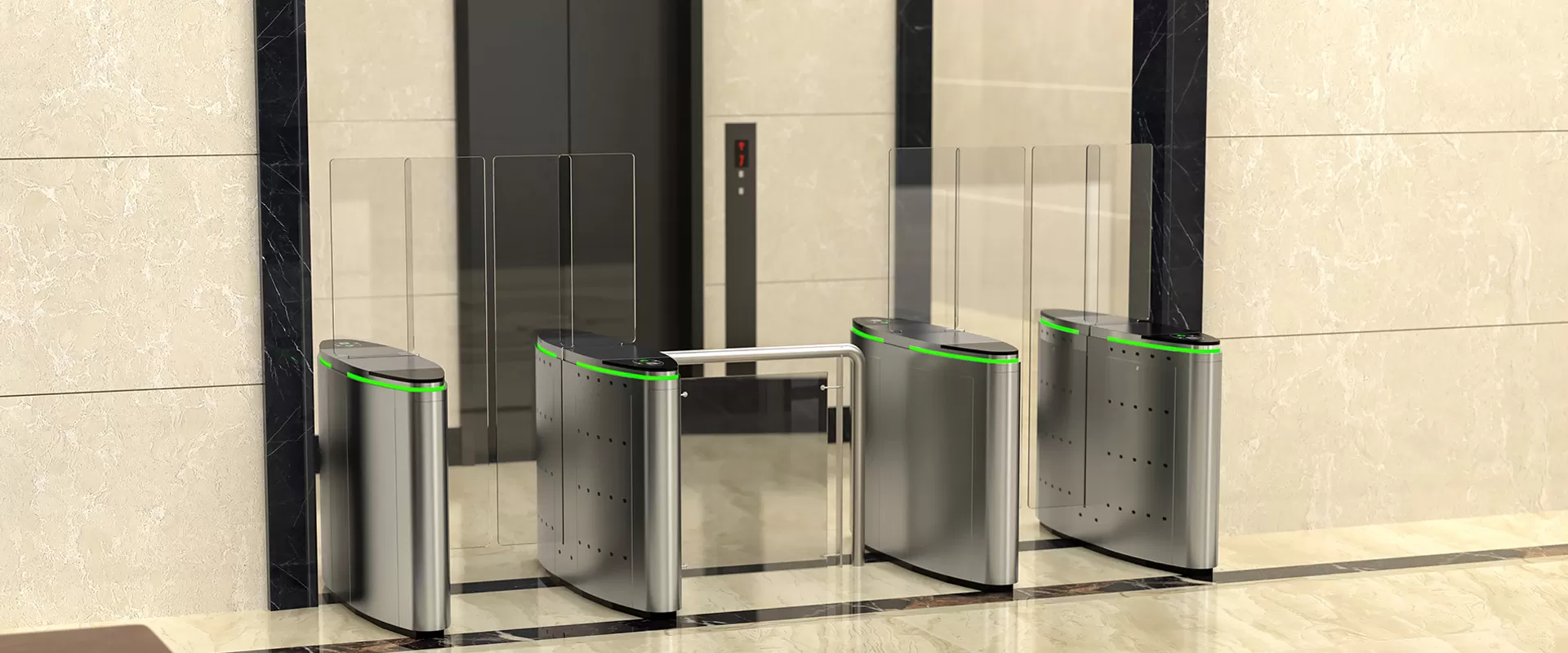

Stainless steel laser cutting, CNC bending and advanced processing technology to form a rigid structure, simple and concise.
Brushed sus304 stainless steel to enhance the stability performance and various color swatch can be offered for optional.
Sliding panels are symmetrical and appears slim and weightless.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance

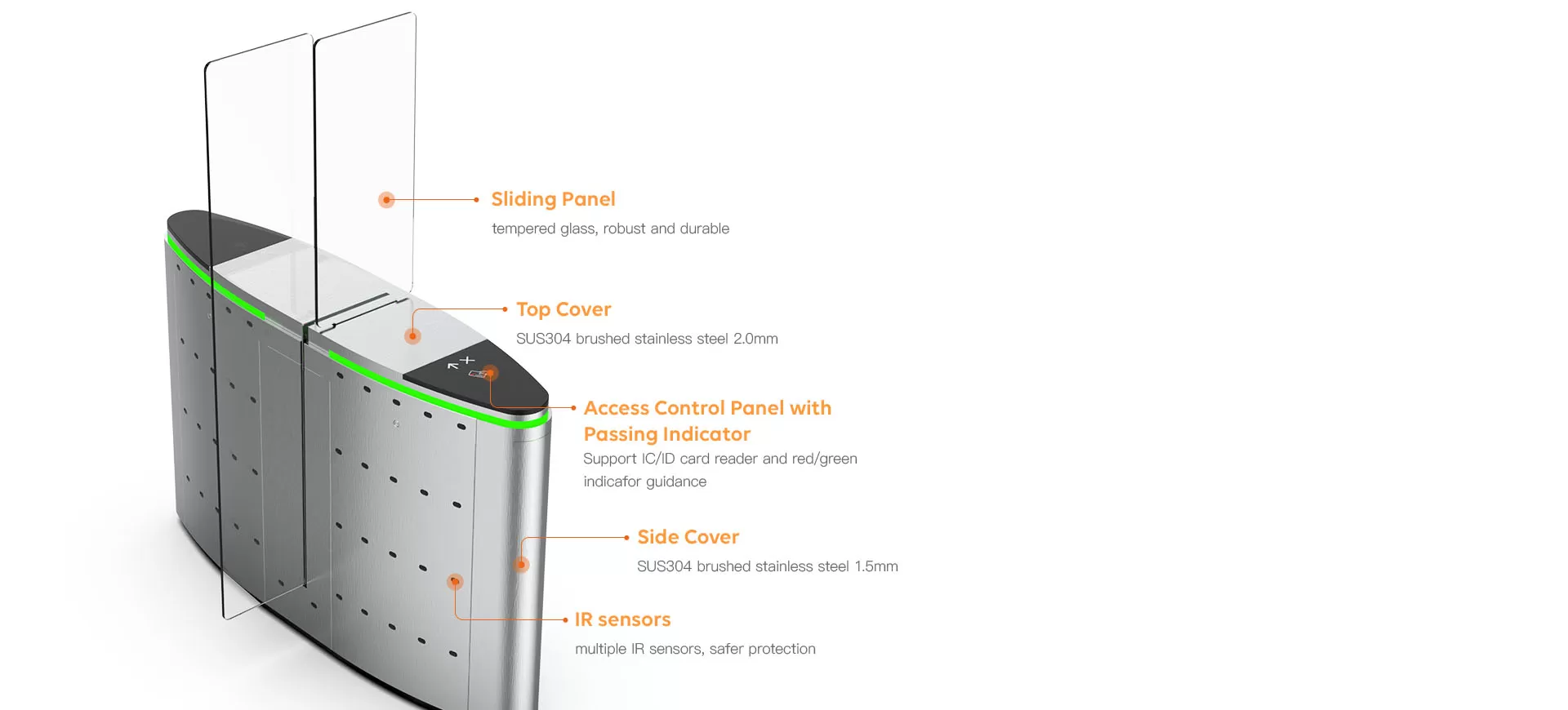

Transparent sliding panels match with the surroundings more.
Inner Servo drive unit, precise mechanism and multiple lR sensors implement high security level protection.

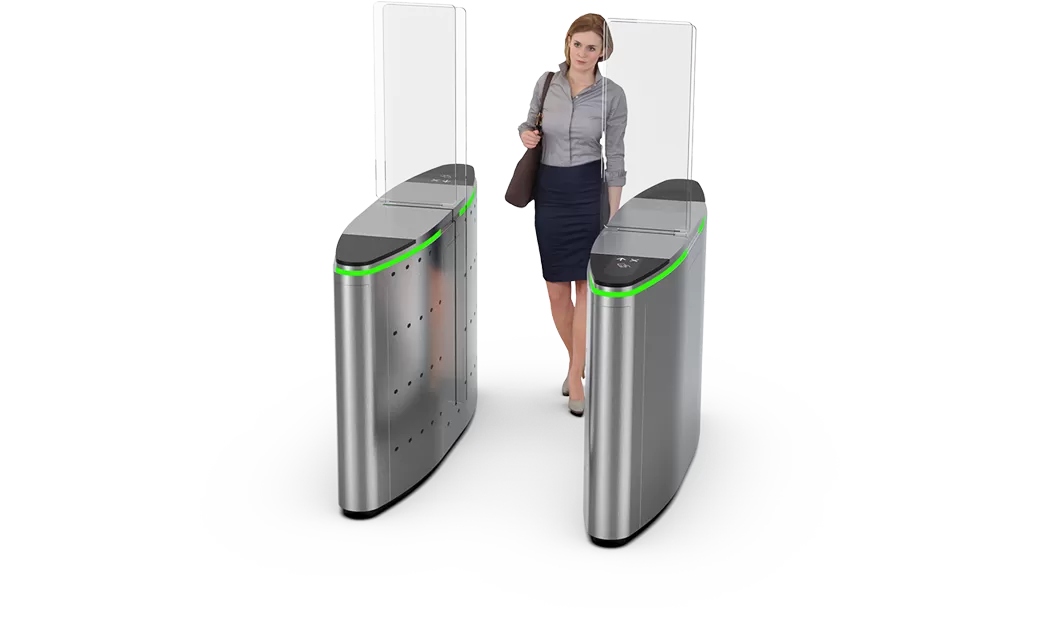

Standard passage width 600mm, suitable for mostly applicable sites
Elegant red/green lighting for passing quidance, direct and concise.
lntelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by DOOR FOC Servo control algorithm and T-type route algorithm, steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.
The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.
The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.
SLIDING GATE DR.TD.6992 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Flap Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1500*W350*H985mm | |
IR Sensor | 8 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right), 200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600mm | |
Passing Speed | 30~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -20℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 2 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

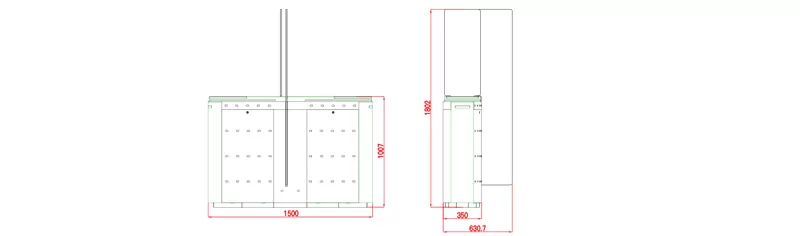

Dimension | ||
| ||

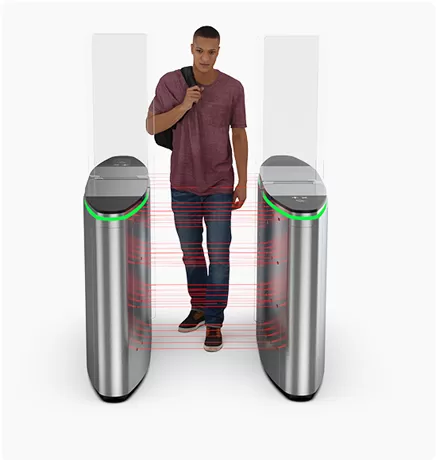

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
