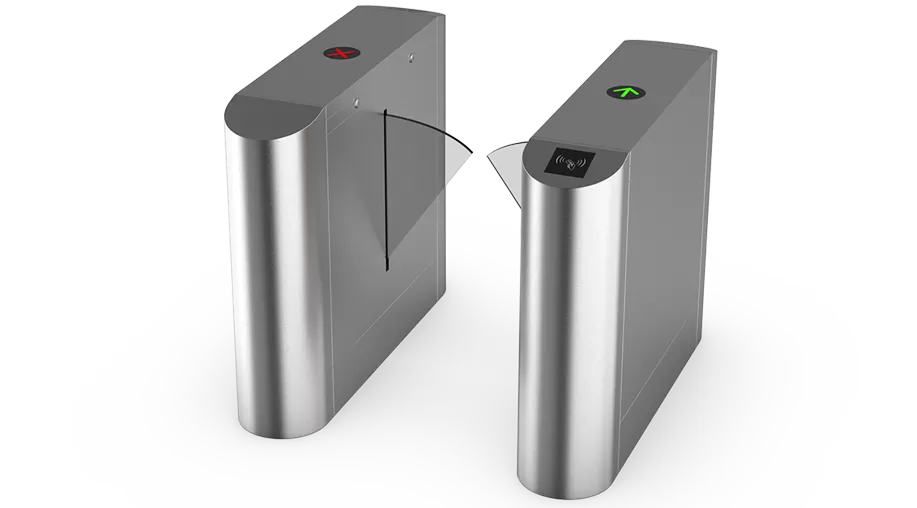

The DR.TD.6971X Flap Barrier features a high-precision SUS 304 stainless steel cabinet, a next-gen BLDC motor + encoder, and an industrial 32-bit ARM processor for precise control. Its modular design enables easy installation and maintenance, while multiple access modes (RFID/NFC/QR code/face recognition) ensure efficient pedestrian flow in high-traffic zones like metros, airports, and smart buildings.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Two transparent flap arm designed as“Flying Wing" can be optional, more slim and weightless.
Invisible lR sensors brings high security level protection.
New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.
High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.
Low Consumption
Noiseless
Long Service Life
Steady Operation
MCBF
Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.
RISC System, Small Size & Low Power Consumption
FLAP GATE DR.TD.6971X | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Flap Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1200*W280*H980mm | |
IR Sensor | 4 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Brushless Motor | |
Power | 40W | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |

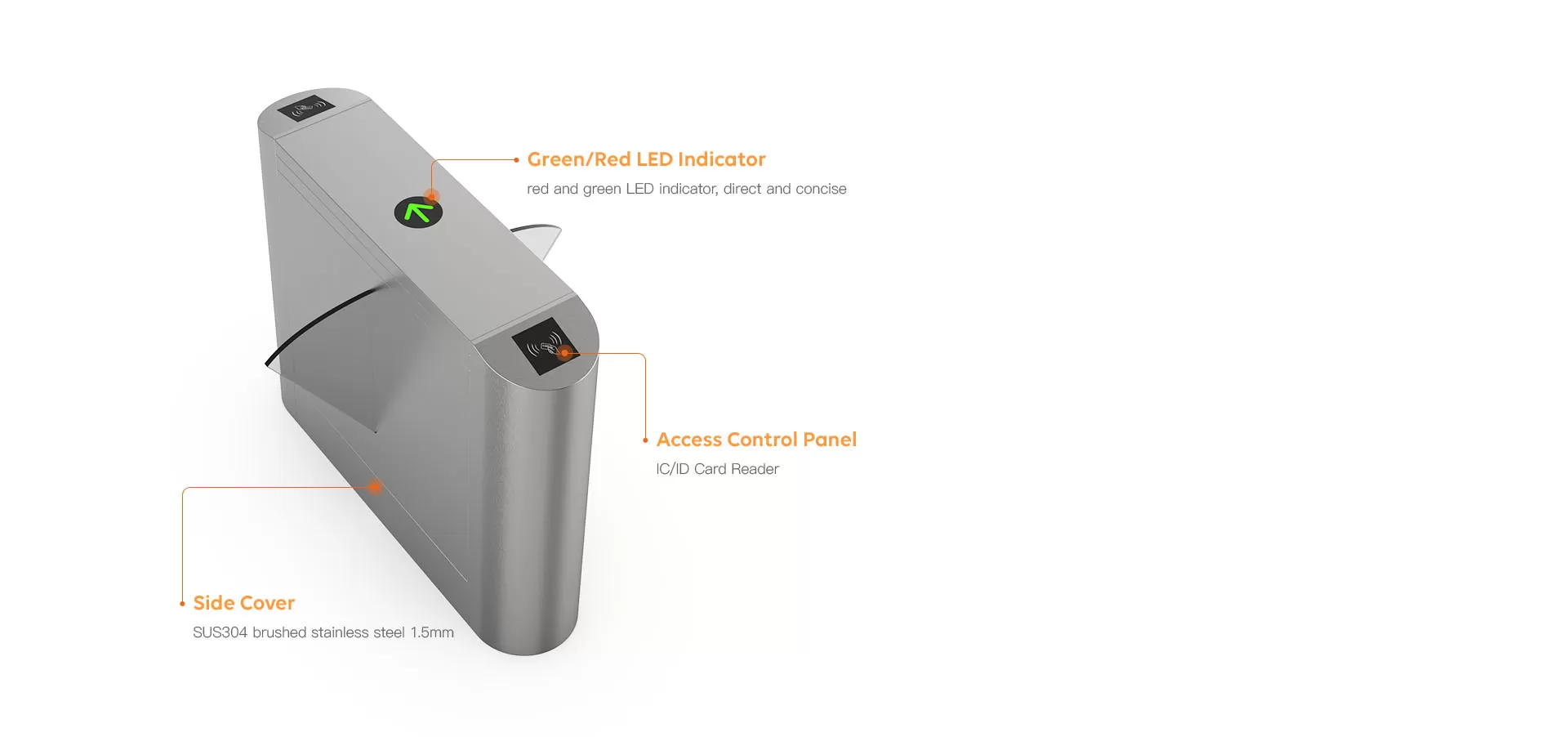

Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600mm | |
Passing Speed | 30~40 people/min | |
Performance | Gate Open Speed | Fastest 0.5s, adjustable |
Positioning Method | Motor+Encoder | |
Extras | Working Environment | Indoor, -20℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP24 | |
Dimension | ||
| ||
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
