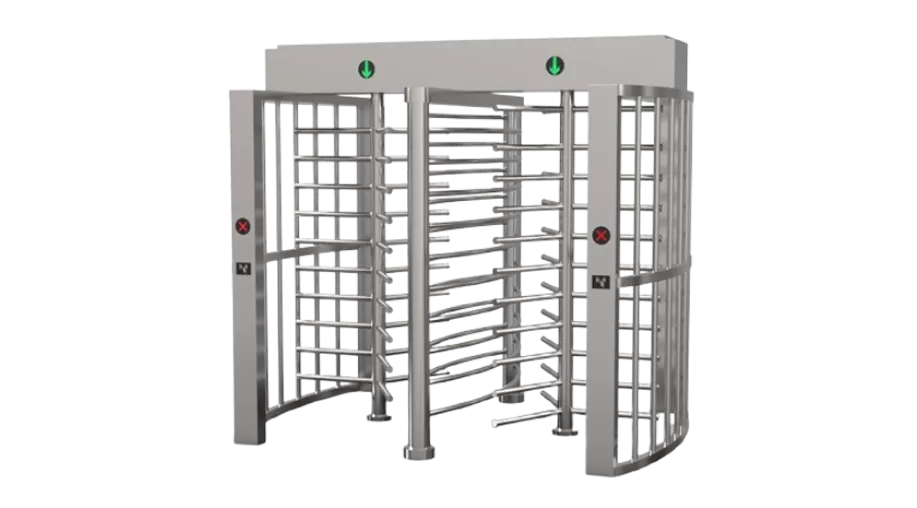

DR.TD.6771A-2 Full-Height Turnstile (Cross Turnstile) is an advanced access control solution designed to prevent climbing and crossing while ensuring strict security in high-risk or unattended environments like factories, power plants, and government facilities. Featuring a precision-engineered CNC stainless steel cabinet, it combines rust-proof durability, sleek modular design, and long-term reliability. The system integrates standard electrical interfaces to support multi-factor authentication, including IC/ID cards, barcode scanners, fingerprint verification, and facial recognition, enabling intelligent, efficient, and unmanned entry/exit management. By enforcing controlled, orderly passage, it effectively blocks unauthorized access while maintaining a streamlined security process.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Water Proof; Dust Proof; Rust Resistance; Corrosion Resistance.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Oil pressure damper & fre-fighting signal input.
lnter-ftting mechanism with dependent design, support unlocking without power on.
| FULL HEIGHT TURNSTILE DR.TD.6771A-2 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L2400*W1180*H2310mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Solenoid Valve | |
Comm. Protocol | RS485 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤600mm | |
Passing Speed | 20-30 people/min | |
Performance | Turnstile Arm Angle | 90° or 120° |
Remote Distance | ≤1200m | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP65 | |

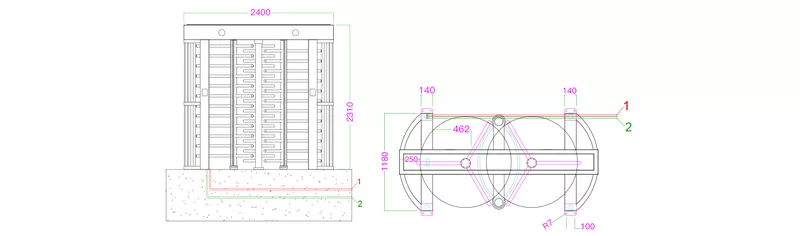

Dimension | ||
| ||
Support personalized customization and configuration.
Anti-intrusion Function
Full height turnstile locks and cannot be pushed without receiving gate open signal.
Multiple Passing Modes
Bi-directional card swiping; One direction card swiping and opposite direction free passing; Bi-directional free passing manually.
Automatically Reset
When not passing within specific time, system will automatically cancel access authority this time.
Uniform Standard Peripheral lnterface
Able to connect to various manage-ment devices and realize remote control and management via PC.
Equipment Stable and Safe
Oil pressure damper with stable running and low noise.

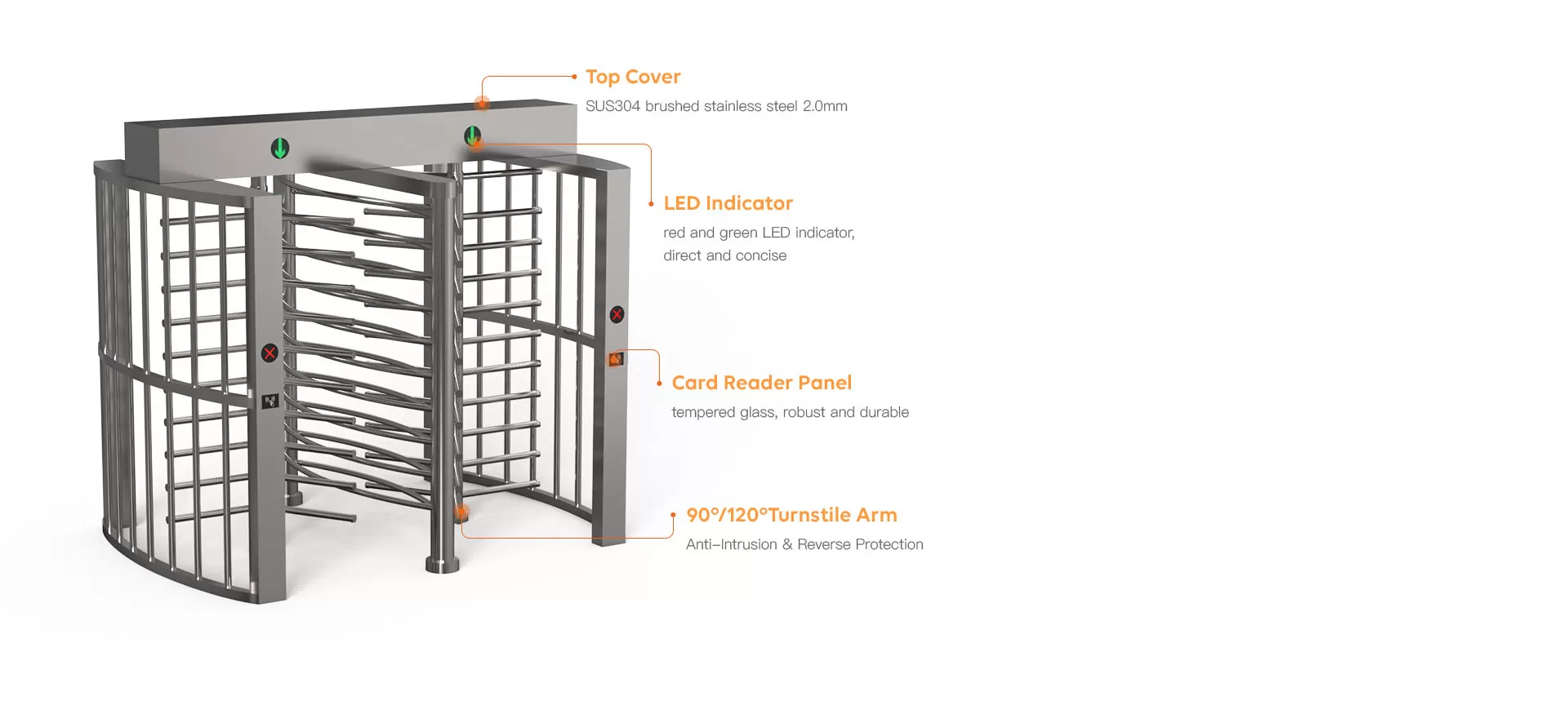

LED Indicator
Green/Red LED indicators guide passing allowed or not.
Intelligent Rotating System
Adopt intelligent rotating system to make turnstile lock/unlock on zero position more accurate and reliable.
Water/Dust Proof
Adopt fine SUS304 stainless steel with water/dust proof, collision resistance and high temp protection.

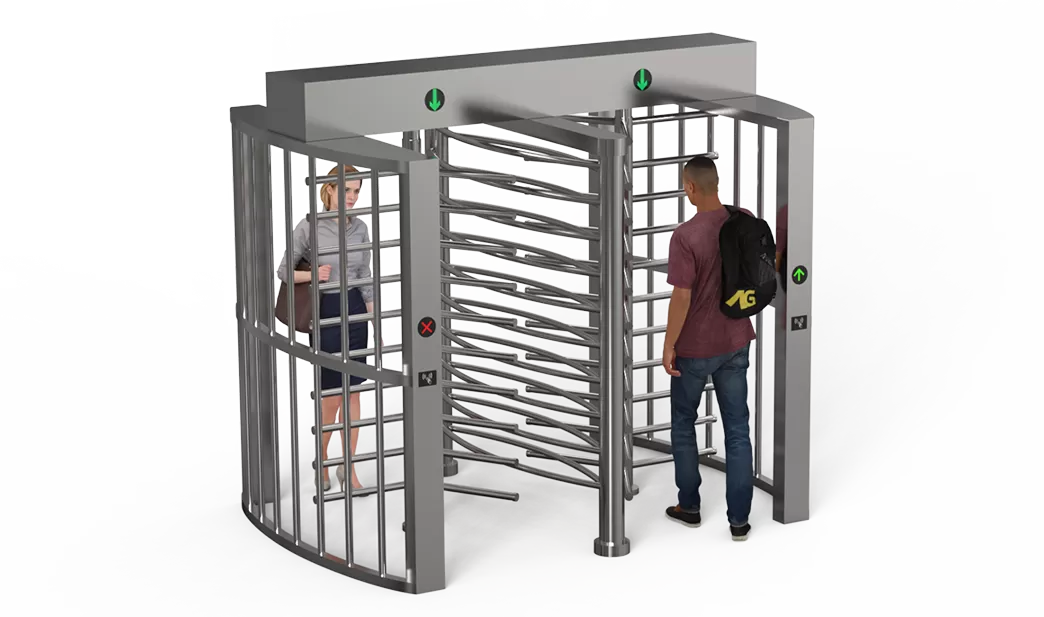

Support uni-directional and bi-directional passing to control pedestrian flow.

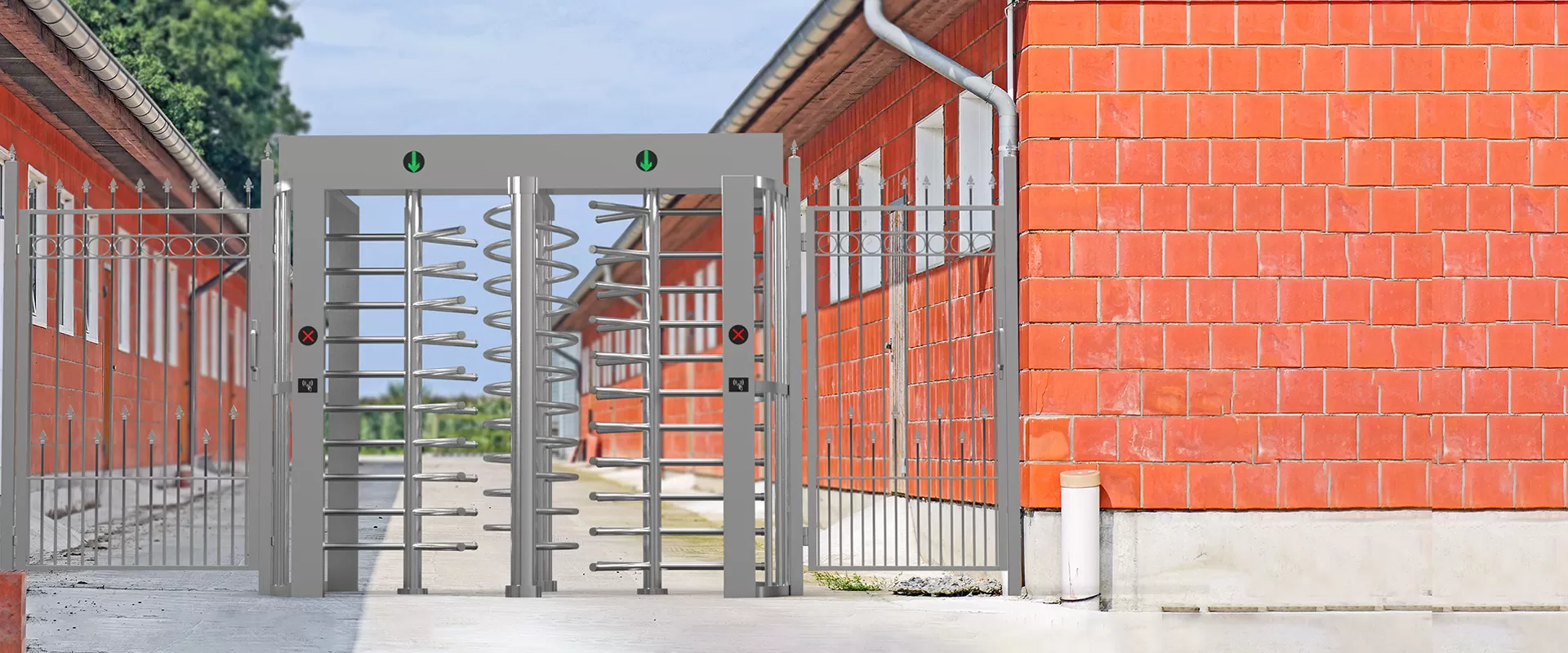

Widely installed in construction site, airport, bus station, railway station, jail, shipping port etc.
Construction Site, Airport, Jail, Railway Station, Shipping Port.
