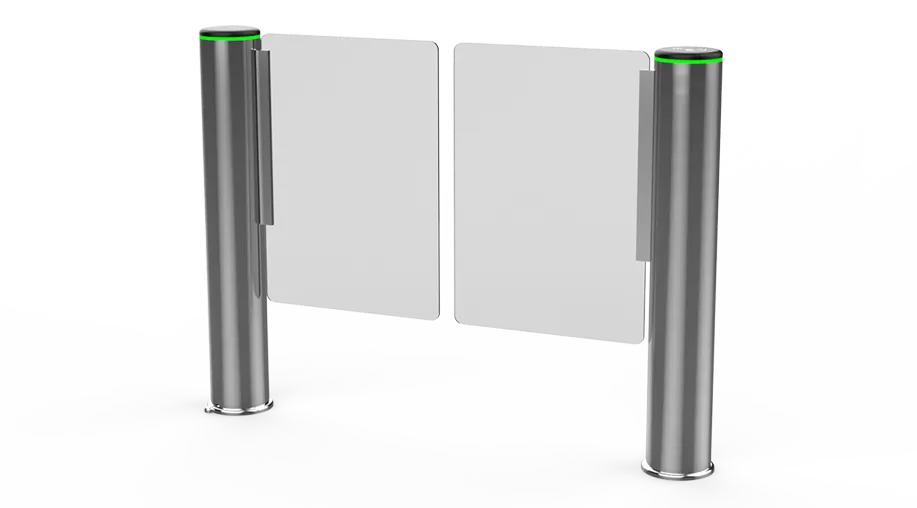

The DR.TD.6670A swing gate features a compact and exquisite cylindrical module design, integrating high-quality materials, multi-optical sensors, a precision drive unit & mechanism, AI algorithms, and advanced security technology to deliver versatile, intelligent, and secure access control solutions for modern lifestyles.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an integral structure, elegant and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance

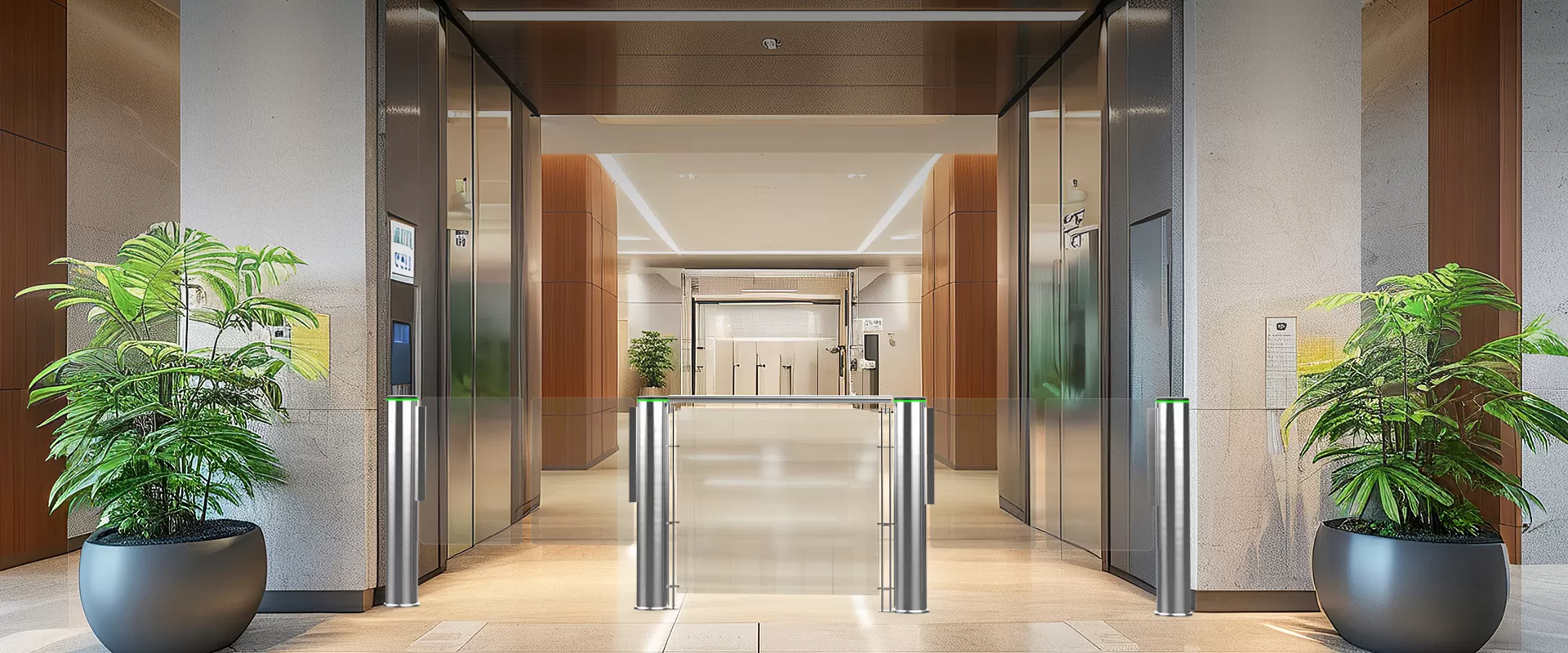

Modules are clearly designed with fluid straight lines and geometrical cylinder modular.
Two swing panels are symmetrical and appears slim and weightless.

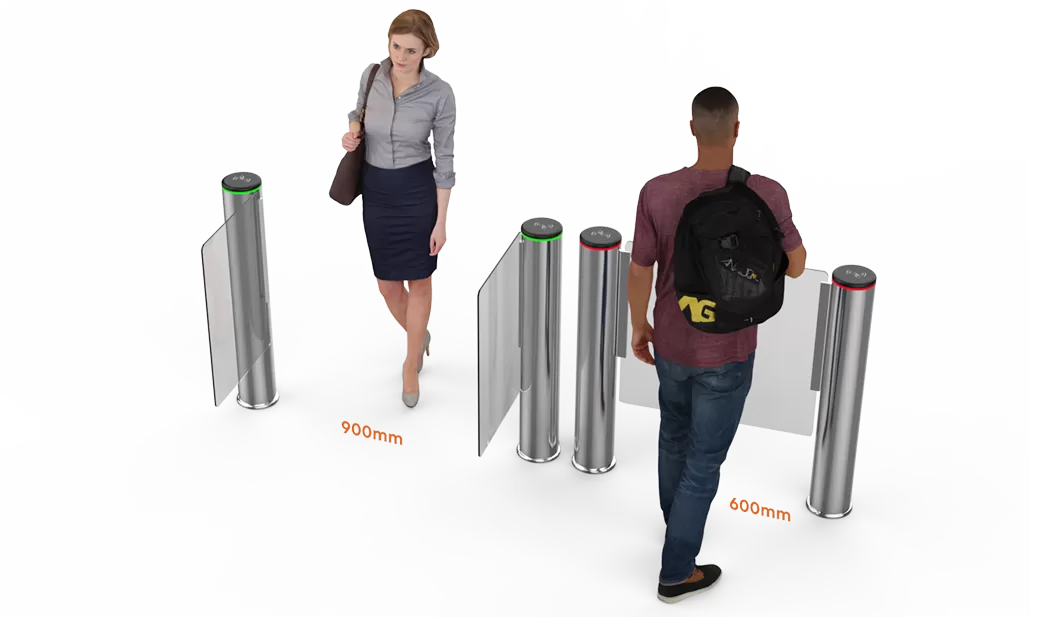

With standard passage width 600mm-900mm, more suitable for narrow space.

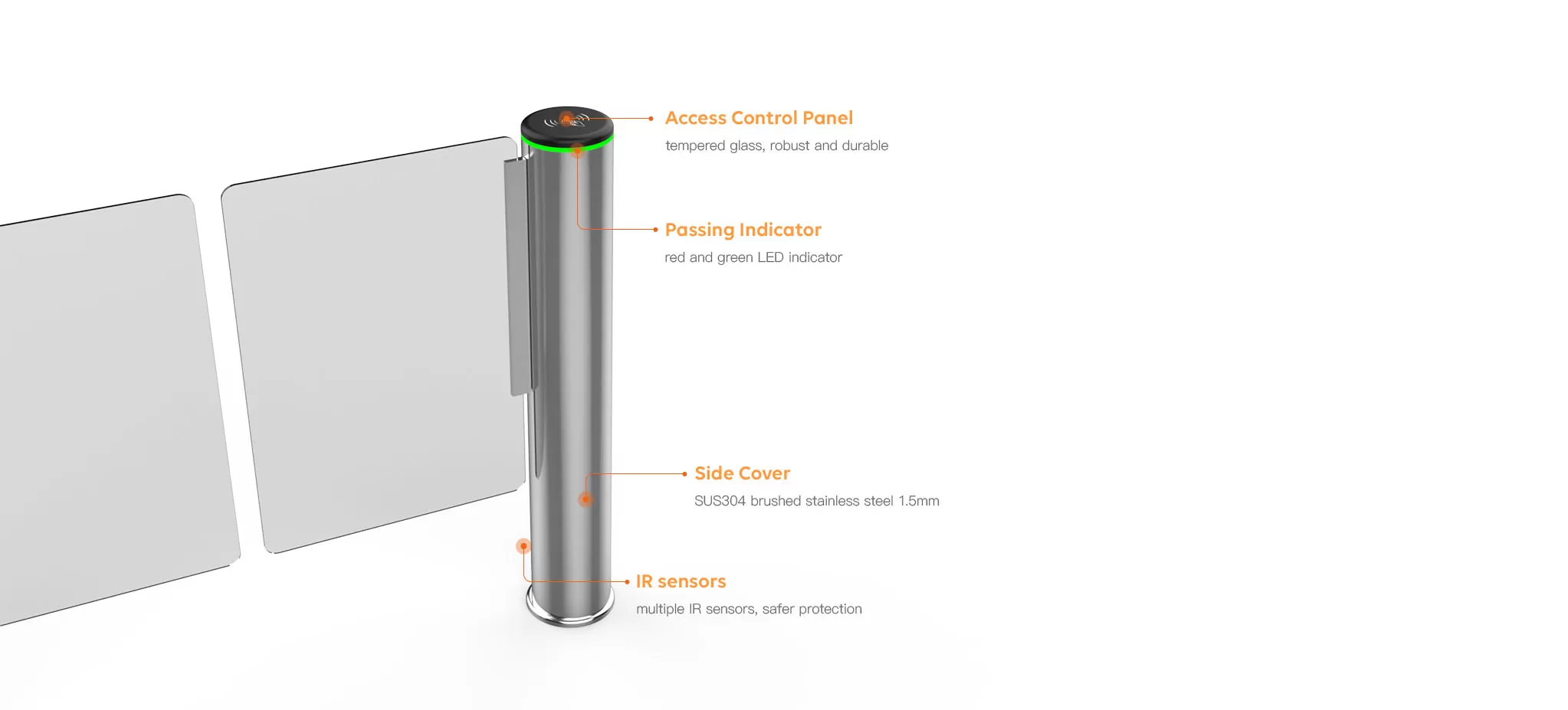

Green/Red LED light loop, direct and concise.
Intelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by the DOOR FOC Servo control algorithm and the T-type route algorithm, steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.
The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.
The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.
| SWING GATE DR.TD.6670A | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass | |
Product Dimension | φ141*1000mm | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 200W | |
Comm. Protocol | RS485 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

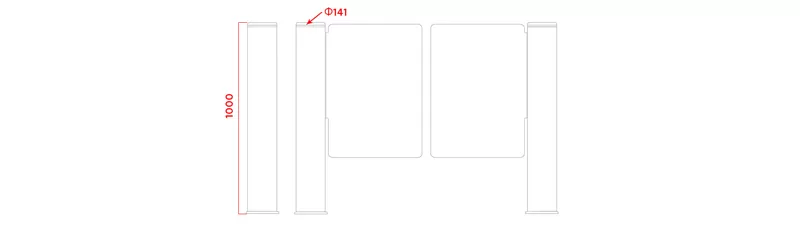

Dimension | ||
| ||
Support uni-directional and bi-directional passing to control pedestrian flow.

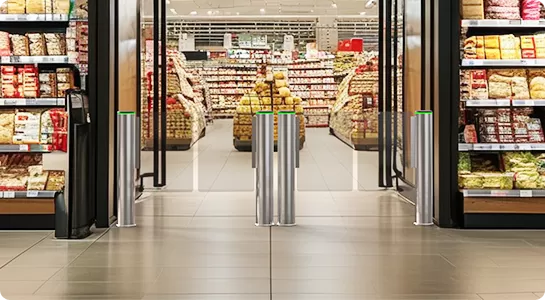

Suitable for library, museum, stadium, theater etc ticket entrance.

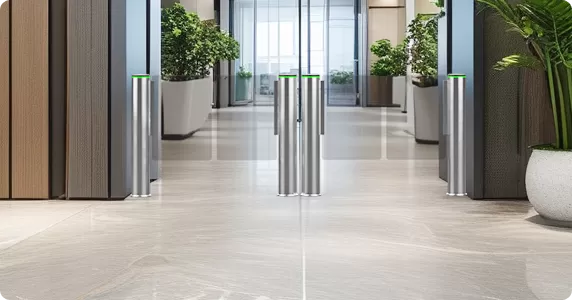

Suitable for community, factory, office building etc access control area.
Suitable for particular passage control.
