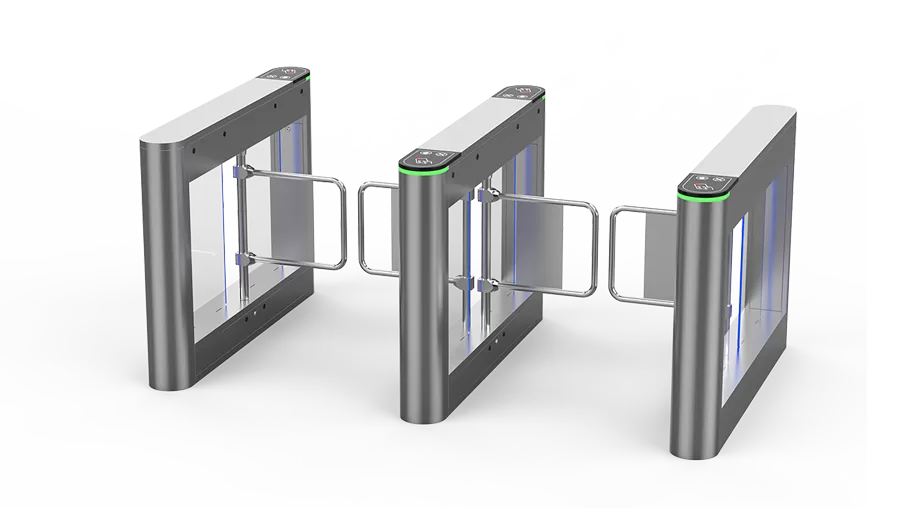

The DR.TD.6657B swing gate seamlessly integrates premium SUS 304 stainless steel construction, a cutting-edge BLDC motor with a high-resolution encoder, and an industrial 32-bit ARM processor for unparalleled performance and durability. Its modular design ensures hassle-free installation, quick disassembly, and streamlined maintenance, while multi-mode access options (such as face recognition, QR codes, RFID, and mobile credentials) enable fast, smooth, and secure pedestrian movement—perfect for high-traffic venues like metro stations, stadiums, and corporate offices. Designed for intensive use, it combines speed, reliability, and intelligent control in a compact, robust package.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Two transparent or stainless swing panels can be optional, more slim and weightless.

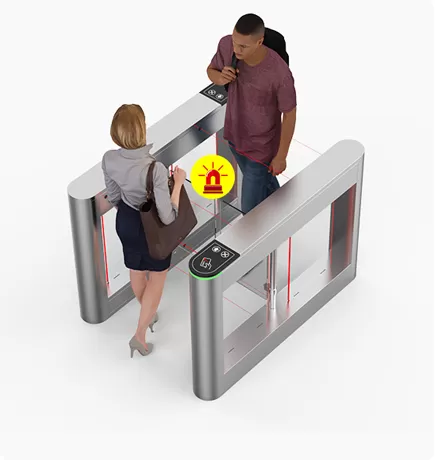

Invisible lR sensors brings high security level protection.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance

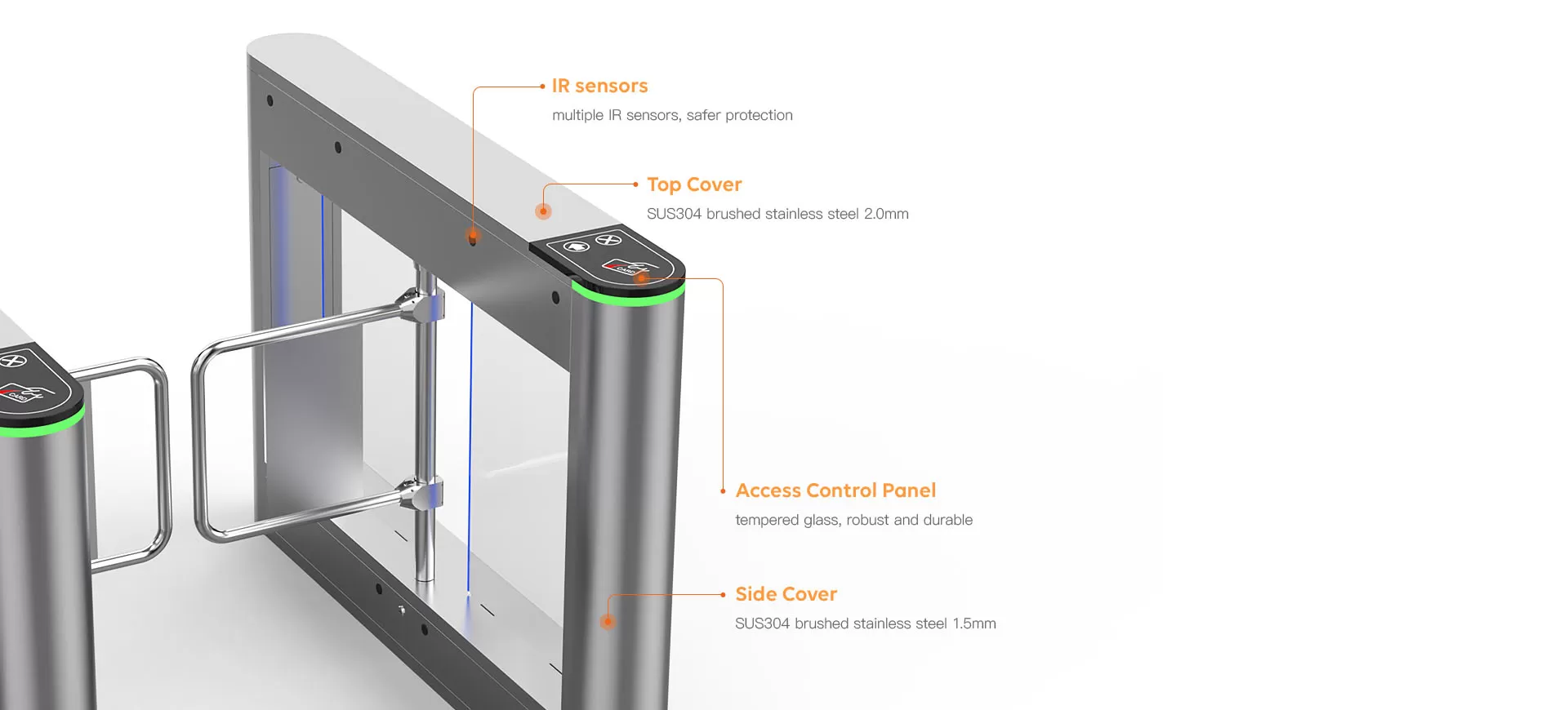

Fine material to enhance the stablility performance

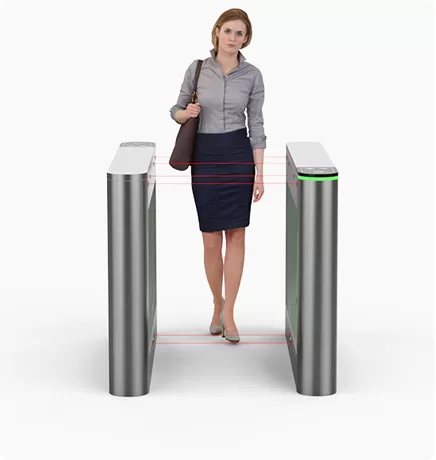

precise optical element to implement high security protection
subtly concealed guidance to make access control more effortless

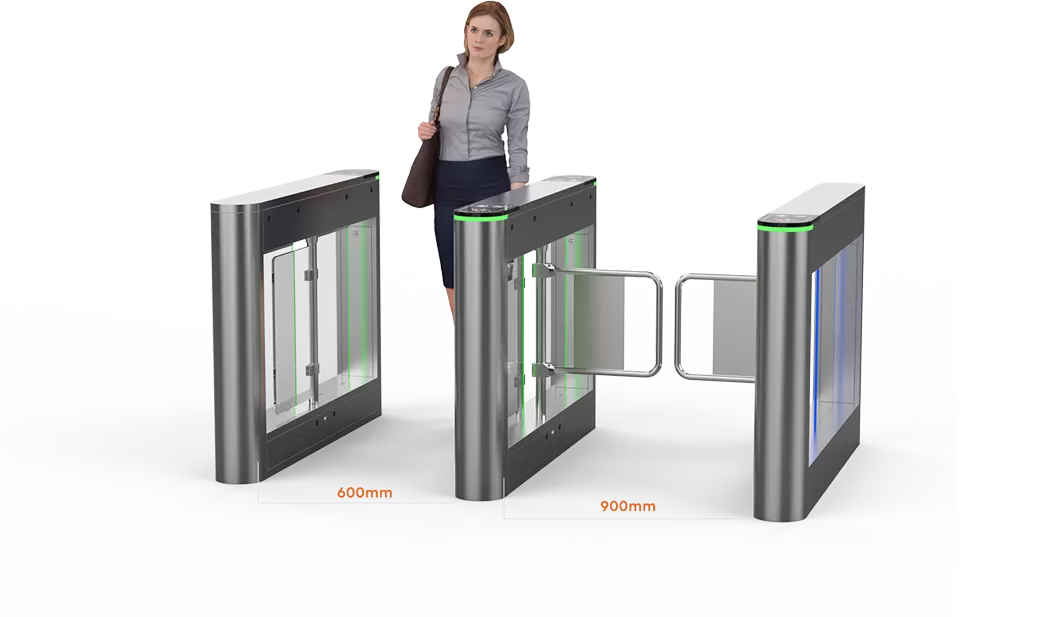

Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.
New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.
High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.
Low Consumption
Noiseless
Long Service Life
Steady Operation
MCBF
Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.
32 Bit ARM Processor, Low Consumption & Powerful Function;
Multi-core Structure, Strong Process Ability & Fast Response Speed;
RISC system, Small Size & Low Power Consumption.
| SWING GATE DR.TD.6657B | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass/Stainless Steel | |
Product Dimension | L1400*W180*H1000mm | |
IR Sensor | 4 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V BLDC Moto | |
Power | 40W | |
Comm. Protocol | RS485/TCP/IP | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~1050mm, adjustable | |
Passing Speed | 30~40 people/min | |
Performance | Gate Open Speed | Fastest 0.5s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Motor+Encoder | |
Extras | Working Environment | Indoor/Outdoor, -20℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP55 | |

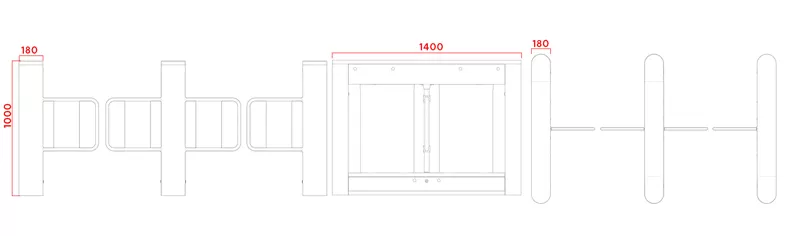

Dimension | ||
| ||

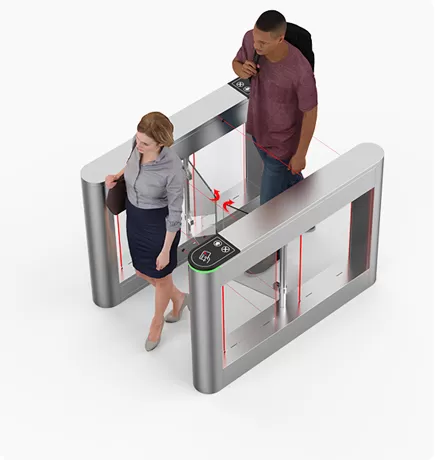

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning

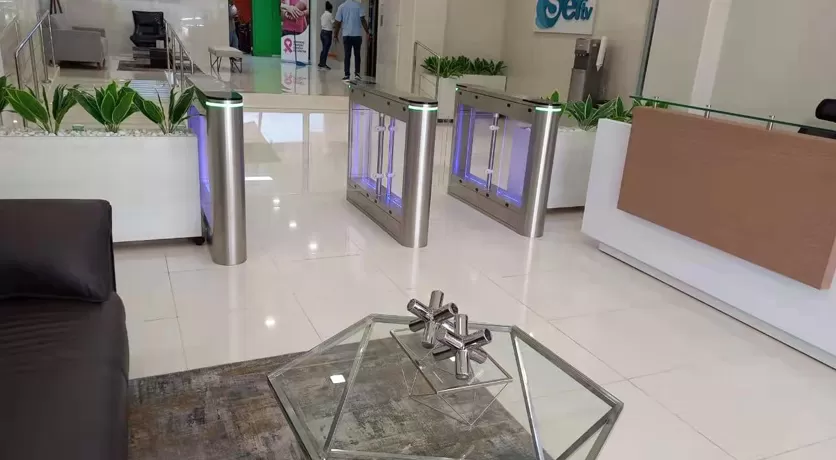

Panama
