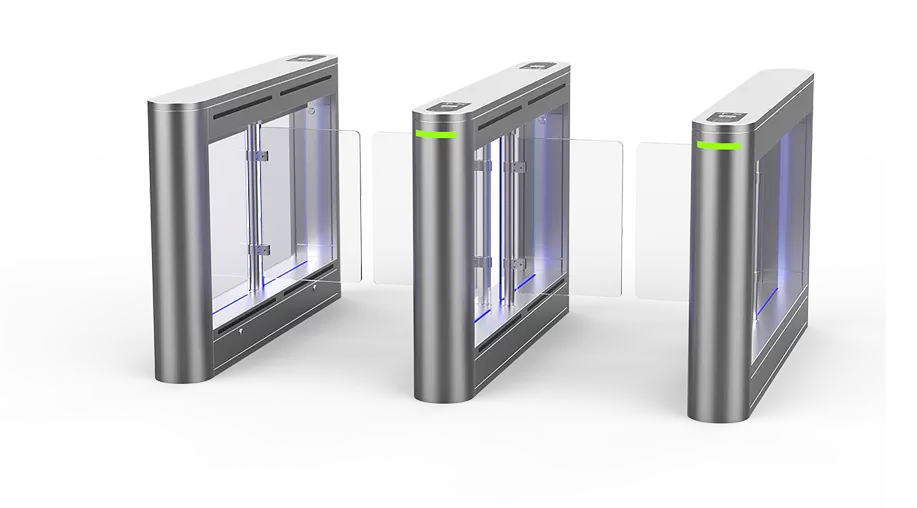

DR.TD.6653B redefines access control excellence with its precision-engineered SUS 304 stainless steel cabinet, powered by next-generation BLDC motors with high-resolution encoders and controlled through an industrial-grade 32-bit ARM processor. Its innovative modular architecture enables effortless installation, quick disassembly and simplified maintenance procedures. Engineered for high-traffic environments, the system's multi-mode access functionality delivers lightning-fast, fluid movement solutions that optimize pedestrian throughput at densely populated venues.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Two transparent or stainless swing panels can be optional, more slim and weightless.
Invisible lR sensors brings high security level protection.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance

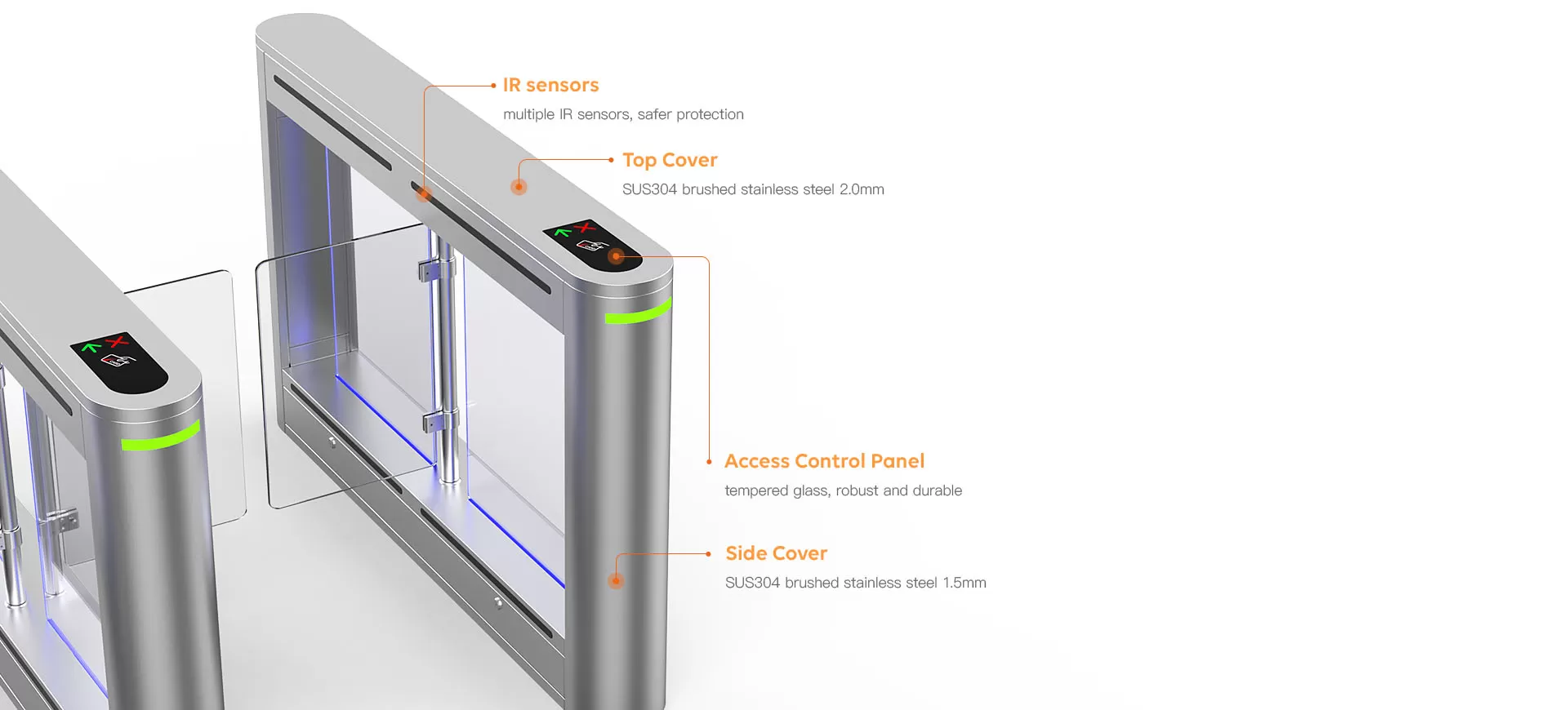

Fine material to enhance the stablility performance
precise optical element to implement high security protection
subtly concealed guidance to make access control more effortless
Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.
New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.
High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.
Low Consumption
Noiseless
Long Service Life
Steady Operation
MCBF
Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.
32 Bit ARM Processor, Low Consumption & Powerful Function;
Multi-core Structure, Strong Process Ability & Fast Response Speed;
RISC system, Small Size & Low Power Consumption.
| SWING GATE DR.TD.6653B | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass/Stainless Steel | |
Product Dimension | L1600*W210*H1000mm | |
IR Sensor | 6 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V BLDC Moto | |
Power | Single Motor 30W, Dual Motor 60W | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~1200mm, adjustable | |
Passing Speed | 30~40 people/min | |
Performance | Gate Open Speed | Fastest 0.5s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Motor+Encoder | |
Extras | Working Environment | Indoor/Outdoor, -20℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP55 | |

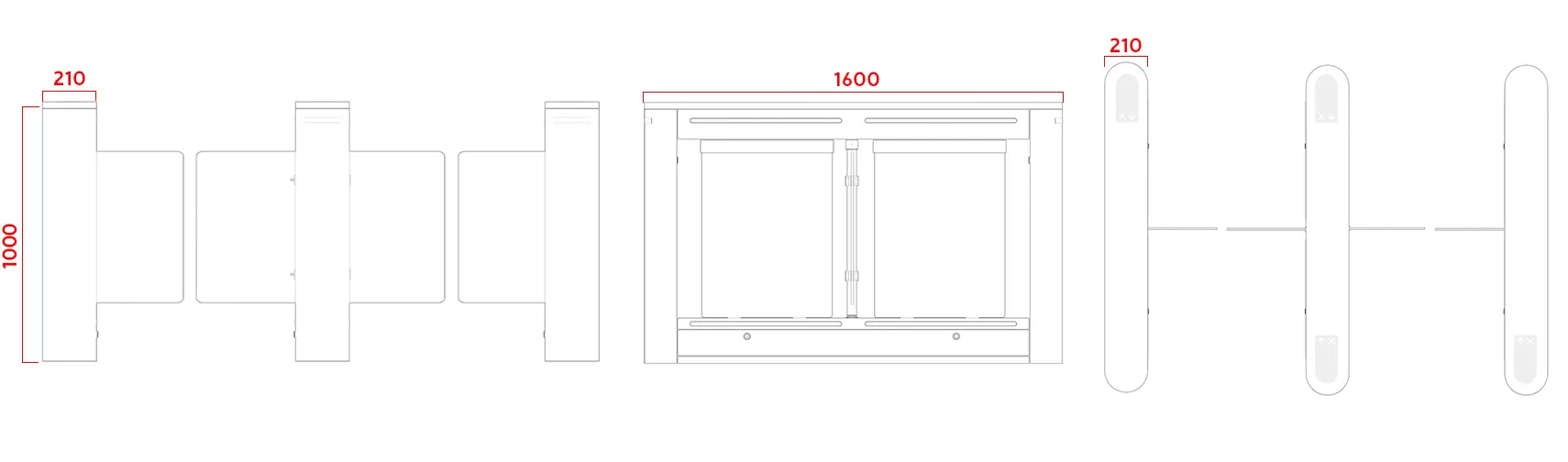

Dimension | ||
| ||

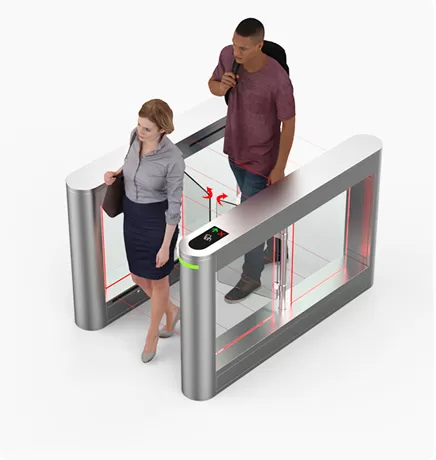

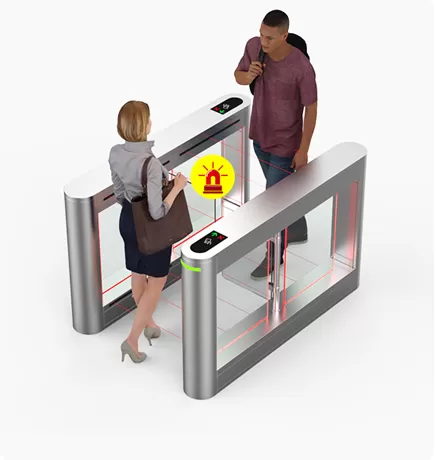

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
