DR.TD.6629c has an exquisite streamlined module appearance design with straight lines and geometrical corner radii Integrated the advantage of fine materials, multiple opticalsensors, precise drive unit & mechanism, advanced artificial intelligence algorithm & security technology etc,it creates more options and possibilities for life.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an integral structure, elegant and concise. Modules are clearly designed with fluid straight lines and geometrical corner radii.
Two swing panels are symmetrical and appears slim and weightless.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Traditional mortise and tenon craftsmanship and seamless integration technology demonstrate DOOR's superior quality.
Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; the floating light design at base forming an ambient guidance effect with modern aesthetics.
Intelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by the DOOR FOC Servo control algorithm and T-type route algorithm, steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.
The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.
The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.
SPEED GATE DR.TD.6629C | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W140*H961mm | |
IR Sensor | 14 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |
Dimension | ||
| ||

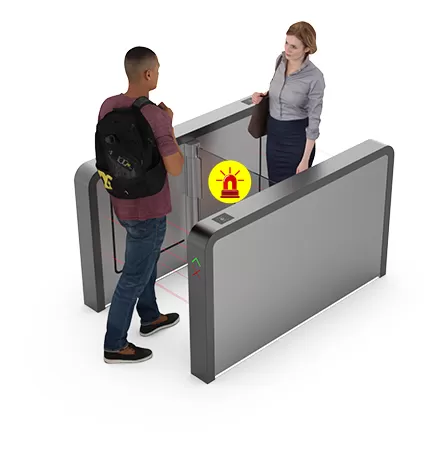

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning

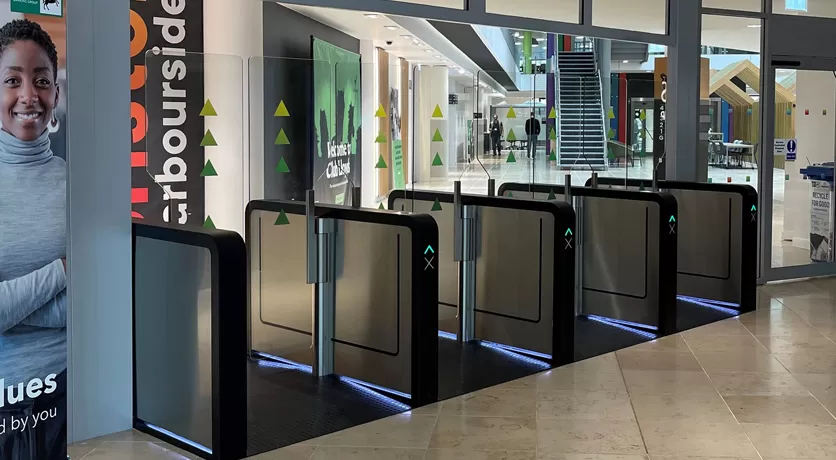

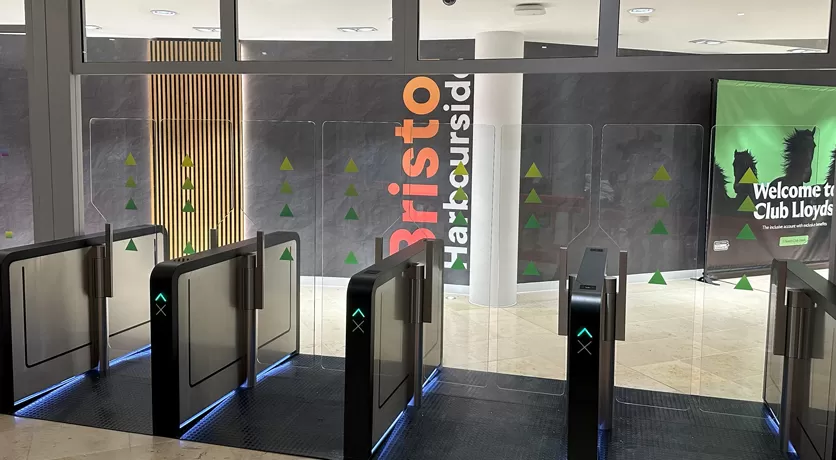

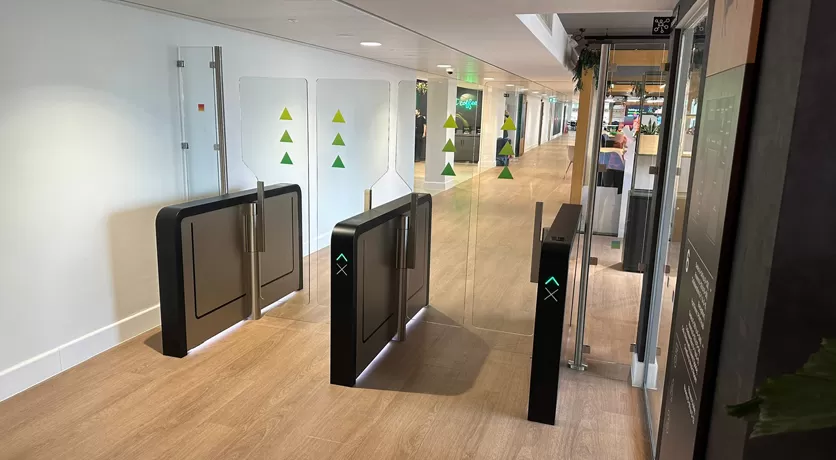

Bristol UK
Bristol UK
Bristol UK
Bristol UK
Bristol UK

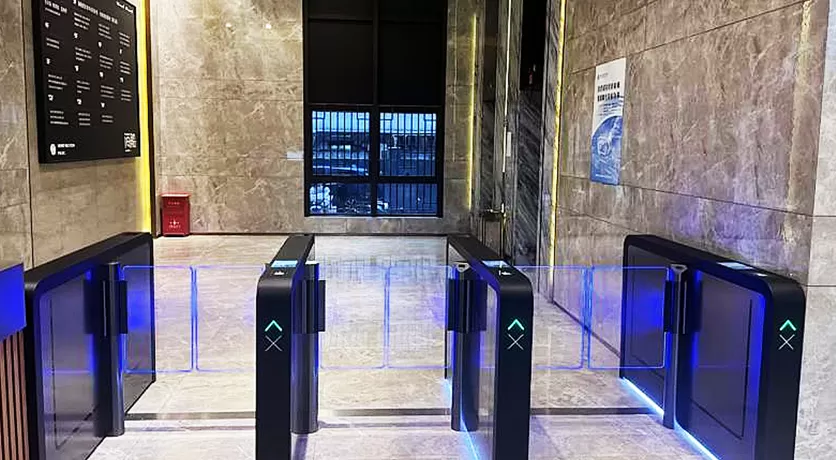

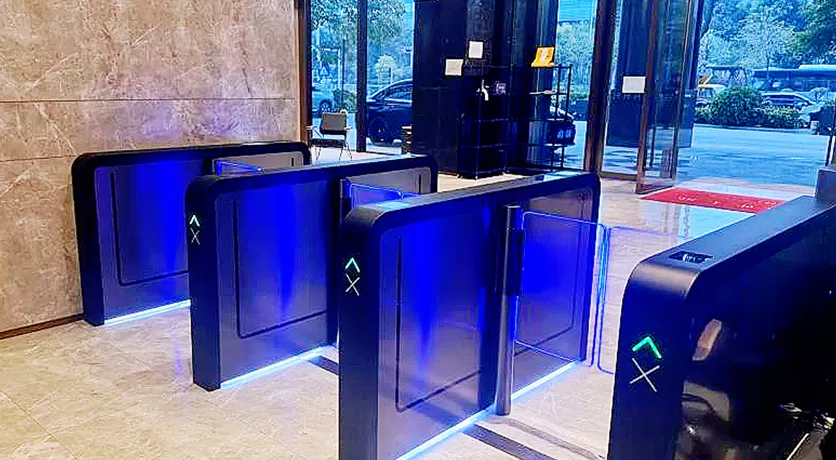

In Mansion
In Mansion
In Mansion
In Mansion
