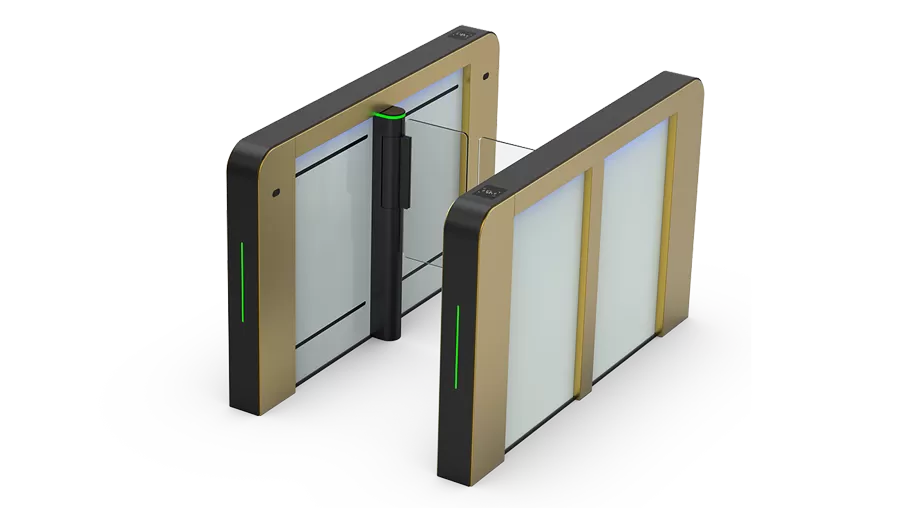

Dr.TD.6629A speed gate integrates the advantages of swing panels and wide aisles, featuring multiple optical sensors and advanced anti-tailgating security technology. This design enables a modern, dynamic, and convenient contactless access control solution, ideal for high-density pedestrian flow sites.

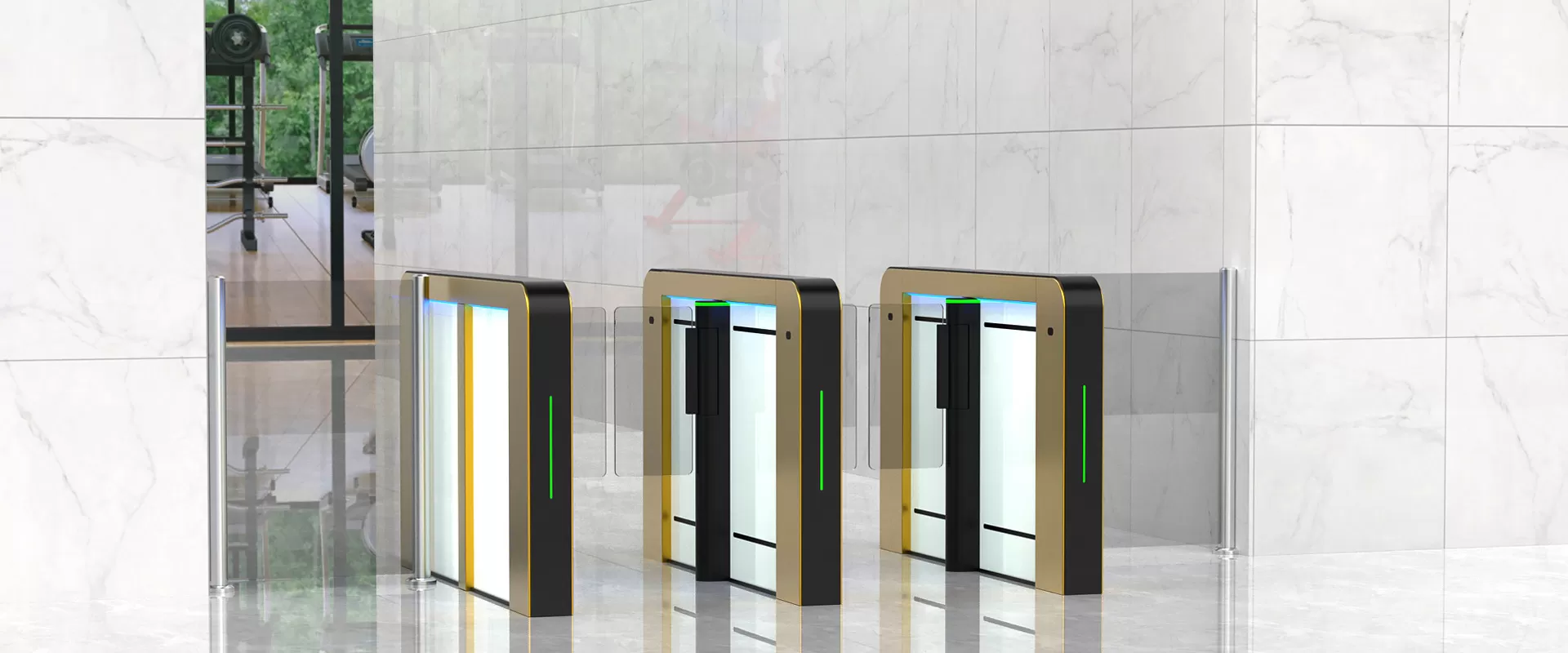

Champagne Gold Cabinet Case, Jade-White Tempered Glass Clapboard Modules are clearly designed with fluid straight lines and geometrical corner radii. Two swing panels are symmetrical and appears slim and weightless.
Traditional mortise and tenon craftsmanship and seamless integration technology demonstrate DOOR's superior quality.

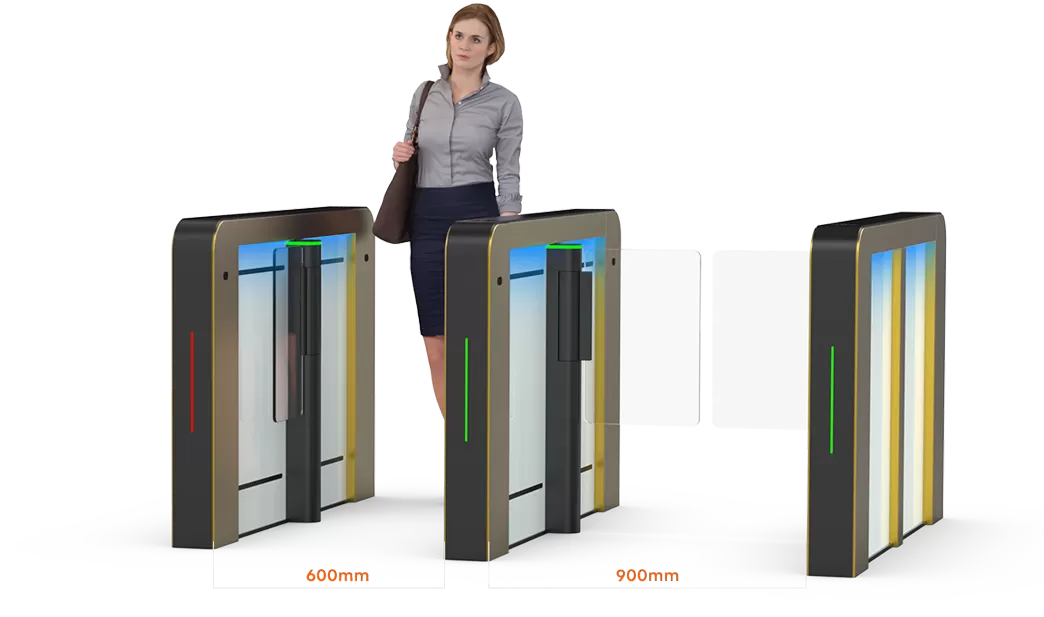

Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.
Intelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by the DOOR FOC Servo control algorithm and T-type route algorithm, which are steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
| SPEED GATE DR.TD.6629A | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel+ Aluminum Alloy |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W140*H1000mm | |
IR Sensor | 12 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |
Color | Champagne Gold + Black | |

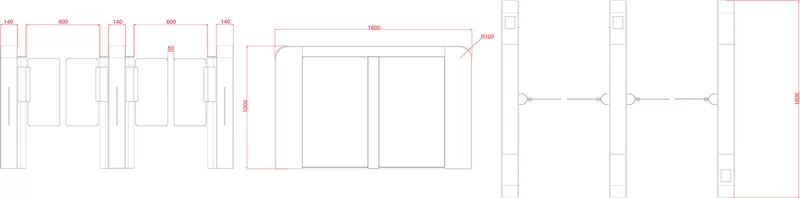

Dimension | ||
| ||

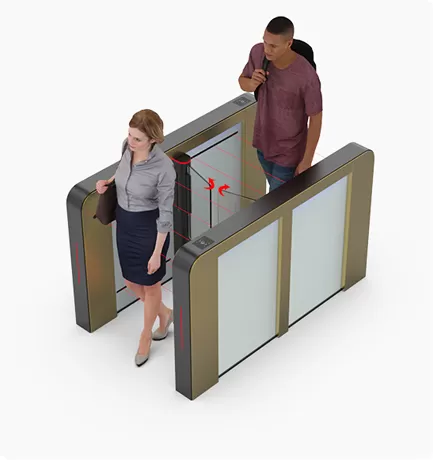

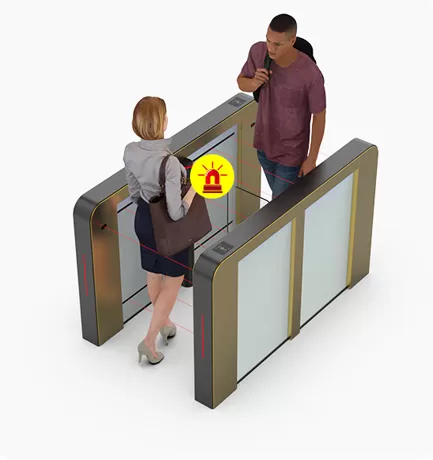

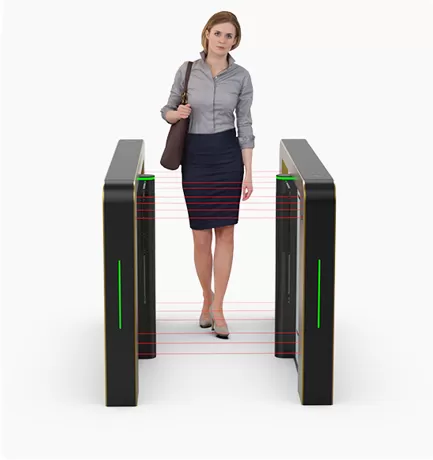

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning

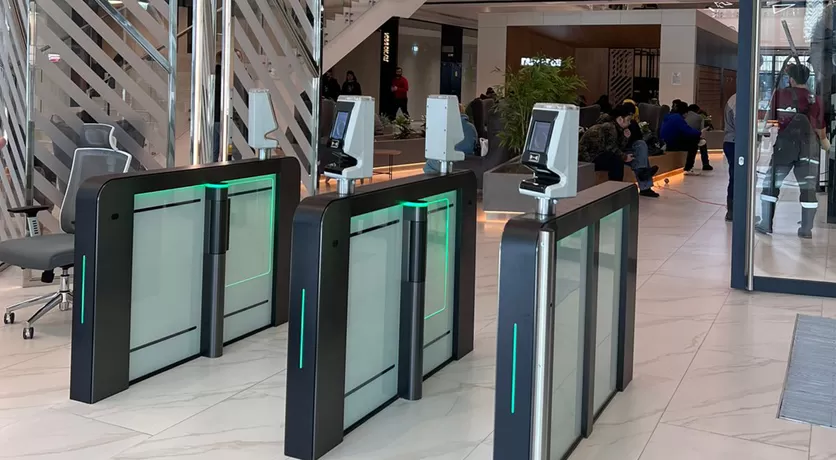

Russia

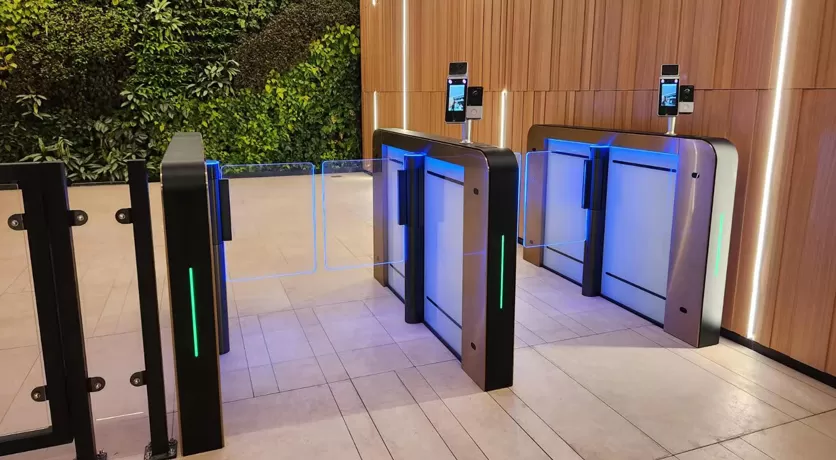

Singapore

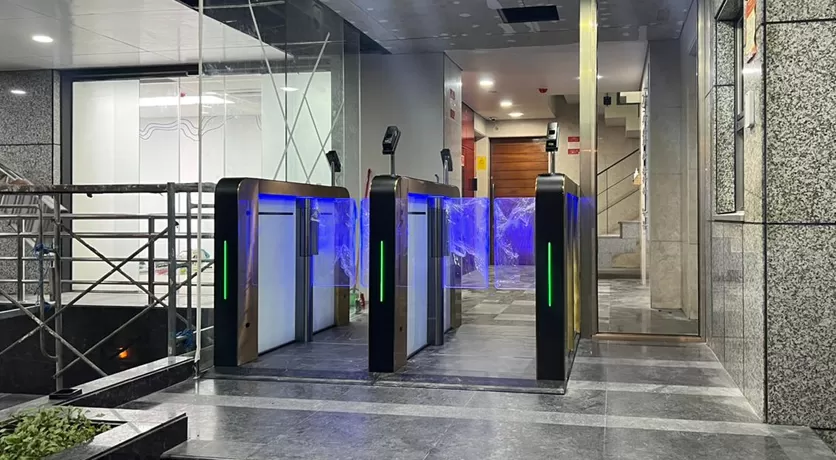

Maldives
