The DR.TD.6628 delivers a fast, dynamic, and secure access control solution, combining modular design, customizable lighting, and versatile functionality for enhanced adaptability. Its premium SUS304 stainless steel construction, finished with high-quality paint baking and vacuum electroplating, ensures durability and a sleek aesthetic. The integrated interactive lighting system adds a modern, futuristic touch, while the high-performance servo-driven swing panel can be tailored for stringent security requirements.
Unique hexagon modular design combines geometric and industrial aesthetic.
Transparent clapboard with fluid light strips and lines brings numeric visual enjoyment, modern and scientific.
Two idiosyncratic swing panels are symmetrical and appears slim and weightless.
Unique Appearance
Stable Structure
Paint Baking Process
Corrosion Resistance
Cabinet case adopted fine cold rolled iron with paint baking process, durable and bright as new.
Precise lR sensors monitor intelligently pedestrian flow with ultra-high density detection, security with ease.
Designed with“RUNNING BULL" as prototype, the combination of champagne gold and elegant black demonstrate luxury and vivid dynamics.

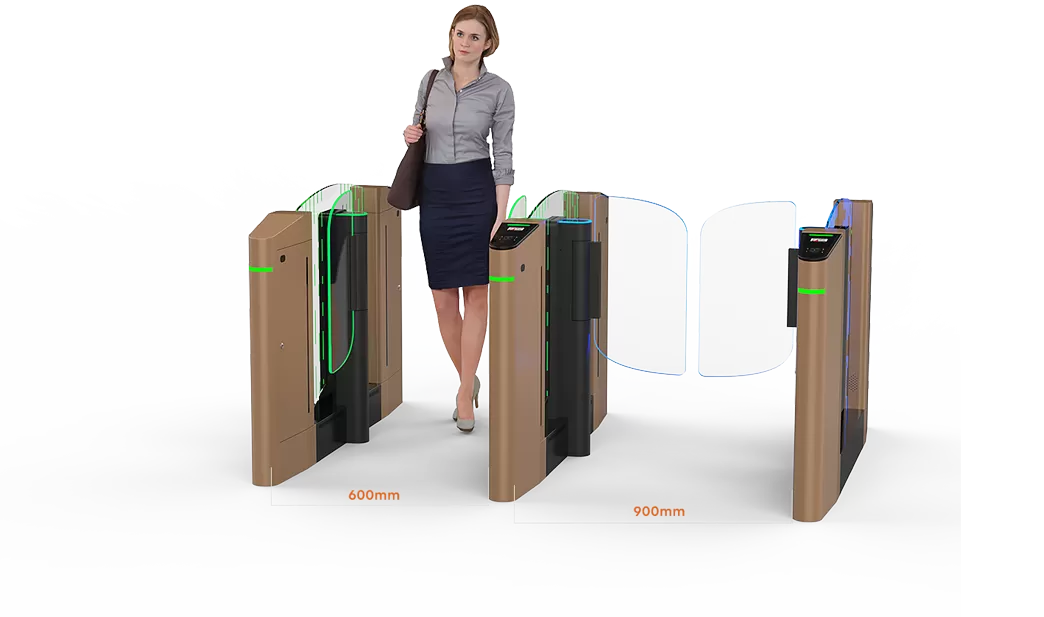

Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.
lntelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by DOOR FOC Servo control algorithm and T-type route algorithm, steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
| SPEED GATE DR.TD.6628 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W140*H1050mm | |
IR Sensor | 8 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |
Color | Optional as Color Swatch | |
Dimension | ||
| ||

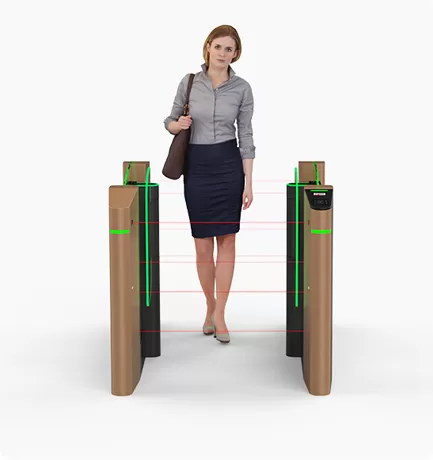

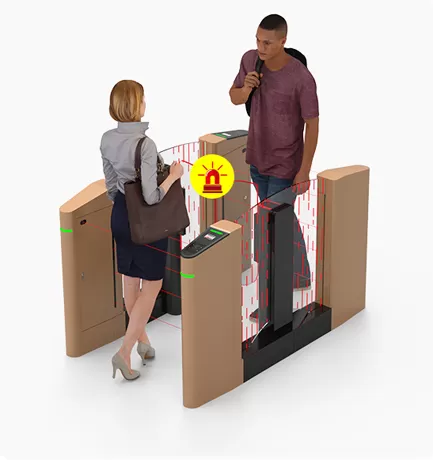

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
