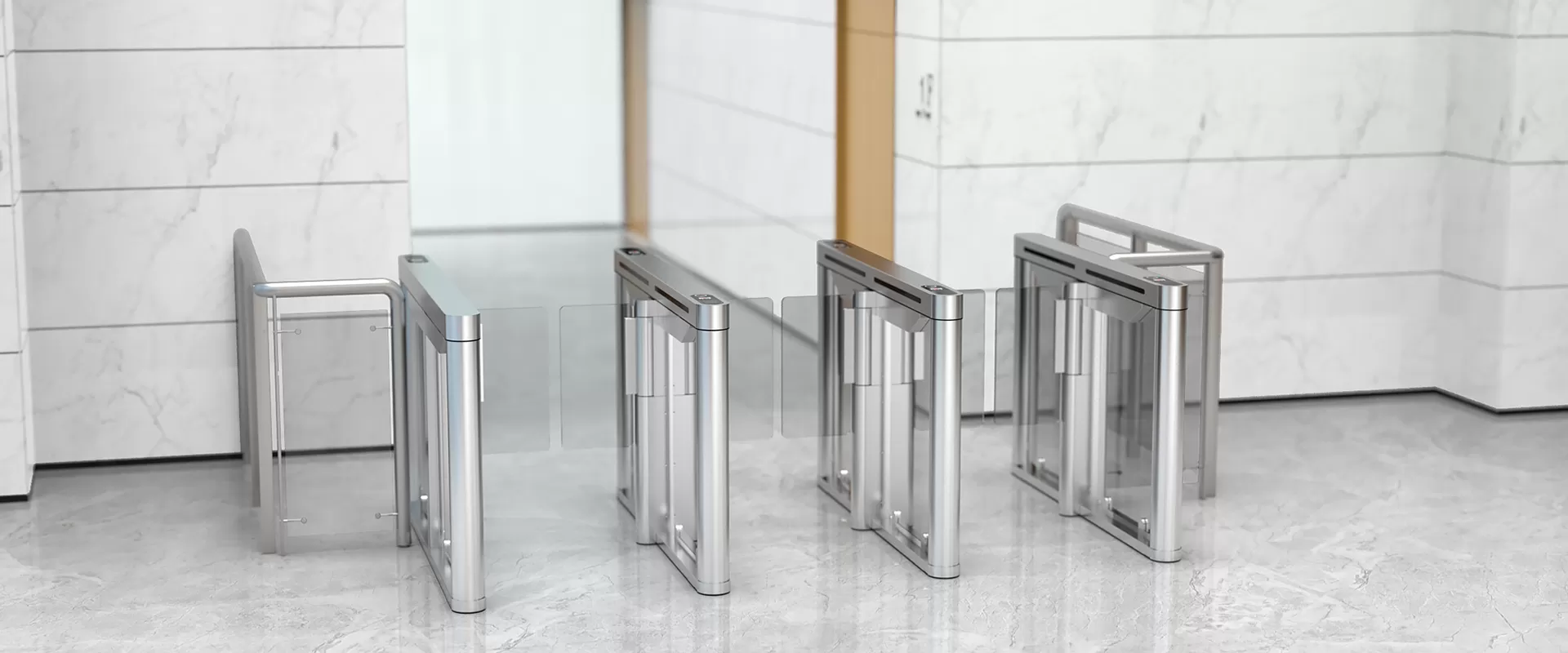

DR.TD.6623 offers an excellent option for access control management. Simple and concise appearance design is more suitable for narrow space. Two transparent swing panels appear more slim and weightless. Precise Servo drive unit and intelligent algorithm ensure the high security level. The integration of software and hardware makes pedestrian flow more effortless.
Stainless steel laser cutting, CNC bending and advanced processing technology to form a rigid structure, simple and concise. More suitable for narrow space. Brushed sus304 stainless steel to enhance the stability performance.
Two transparent swing panels are symmetrical and appears slim and weightless. Invisible lR sensors brings high security level protection.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Fine material to enhance the stablility performance
precise optical element to implement high security protection
subtly concealed guidance to make access control more effortless
Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Swing Panel Design: pure transparent swing panel or hollow-caved wave swing panel for optional. Hollow-cavedmore suitable for wide passage to reduce airflow resistance .
Intelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by the DOOR FOC Servo control algorithm and T-type route algorithm, steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.
The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.
The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.
| SPEED GATE DR.TD.6623 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W120*H1030mm | |
IR Sensor | 6 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

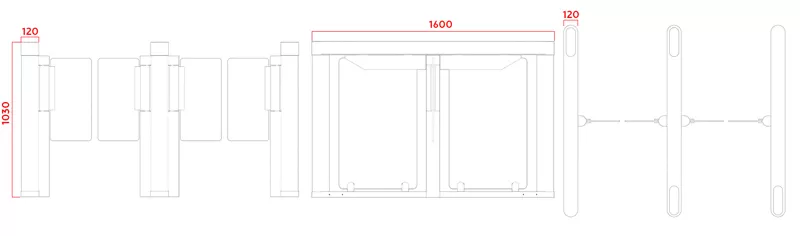

Dimension | ||
| ||

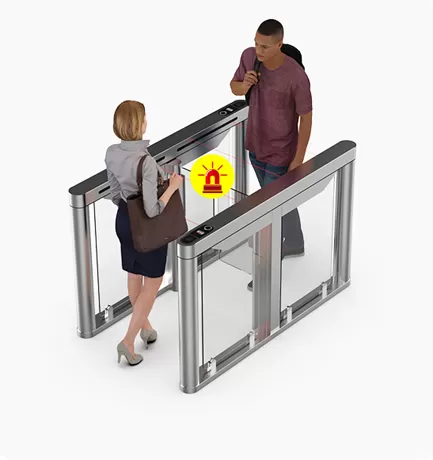

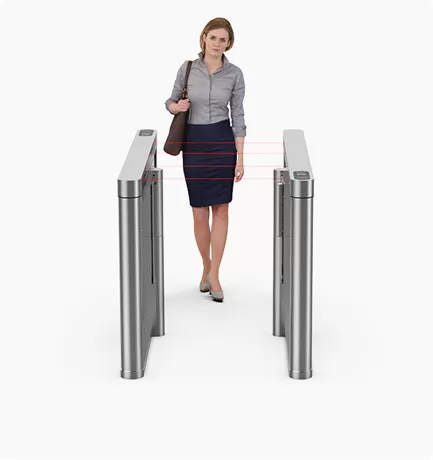

Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
