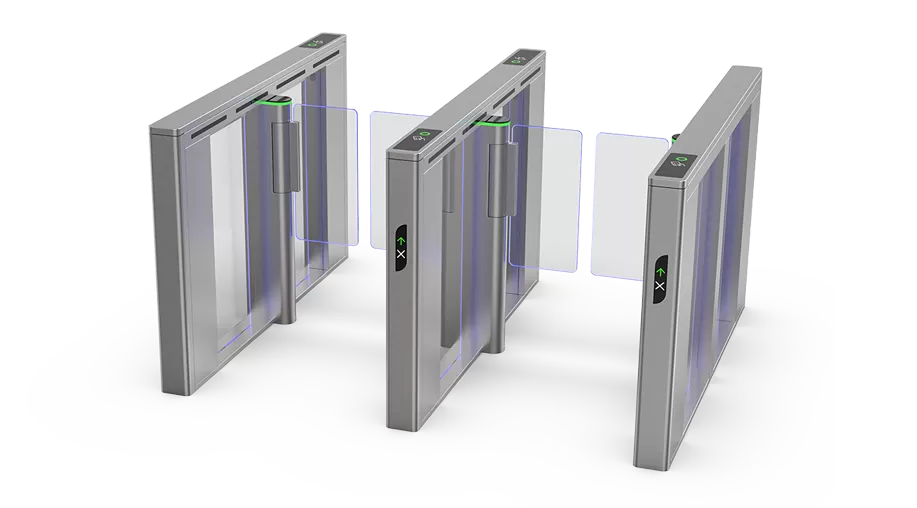

Name: DR.TD.6621B
Brand: Shenzhen Door Intelligent Control Technology Co., LTD.

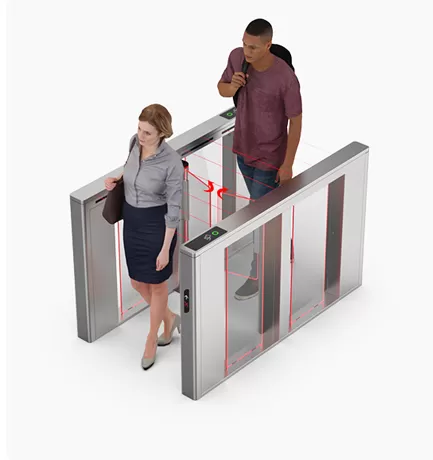

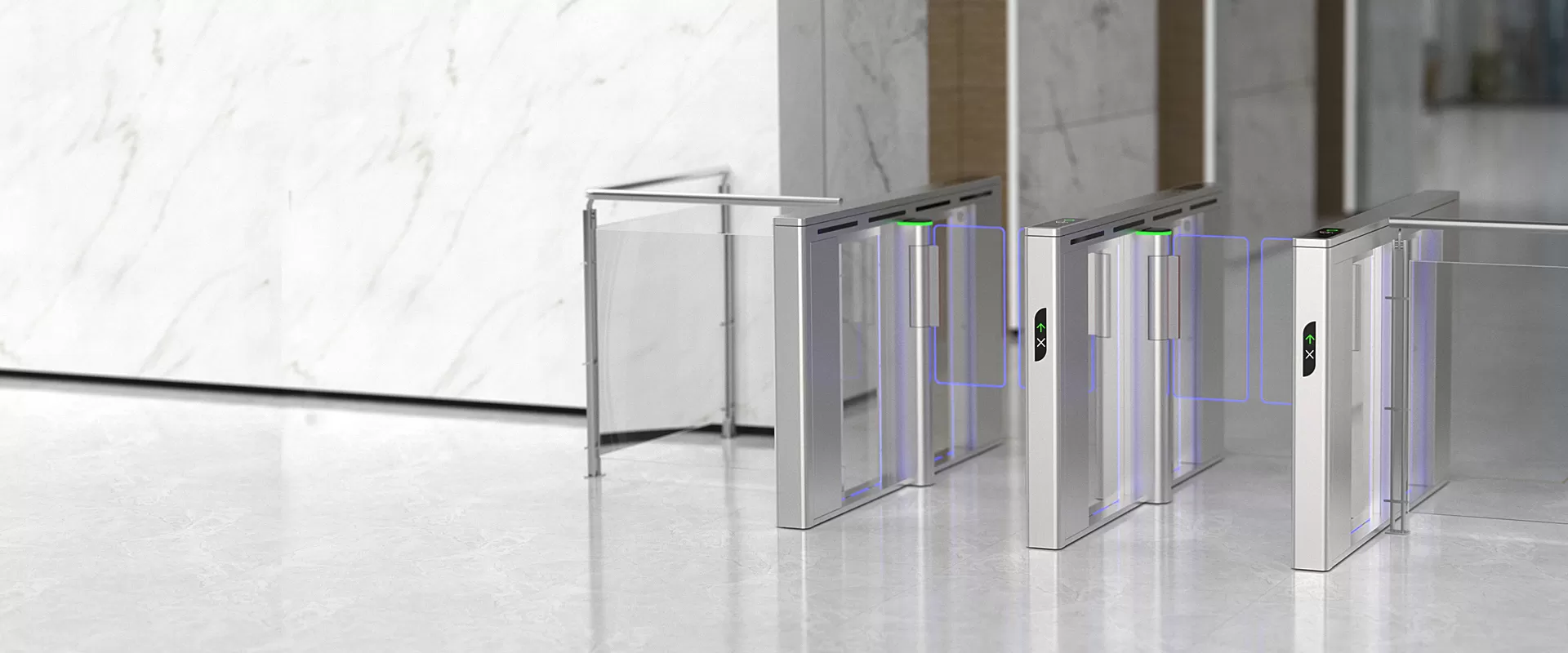

The DR.TD.6621B speed gate combines a durable stainless steel cabinet with transparent panels for modern access control. Powered by AI algorithms and precision servo drive, it automatically adjusts passage width to suit different entry/exit requirements. Features multiple optical sensors and advanced anti-tailgating technology to prevent unauthorized access. Ideal for high-traffic areas like airports, offices, and stadiums, offering secure, contactless pedestrian flow management with dynamic operation and sleek aesthetics.

lndustrial CNC Appearance Design

This speed gate features an industrial CNC appearance design. Its rigid structure is formed through stainless steel laser cutting, CNC bending, and advanced processing technology, resulting in a simple and concise profile.

The brushed SUS304 stainless steel enhances the stability performance of the speed gate, and various color swatches can be offered as an option.

Two transparent swing panels are symmetrical, giving the entire speed gate a slim and weightless appearance.

Steel Laser Cutting

CNC bending

Corrosion Resistance

Abrasion Resistance

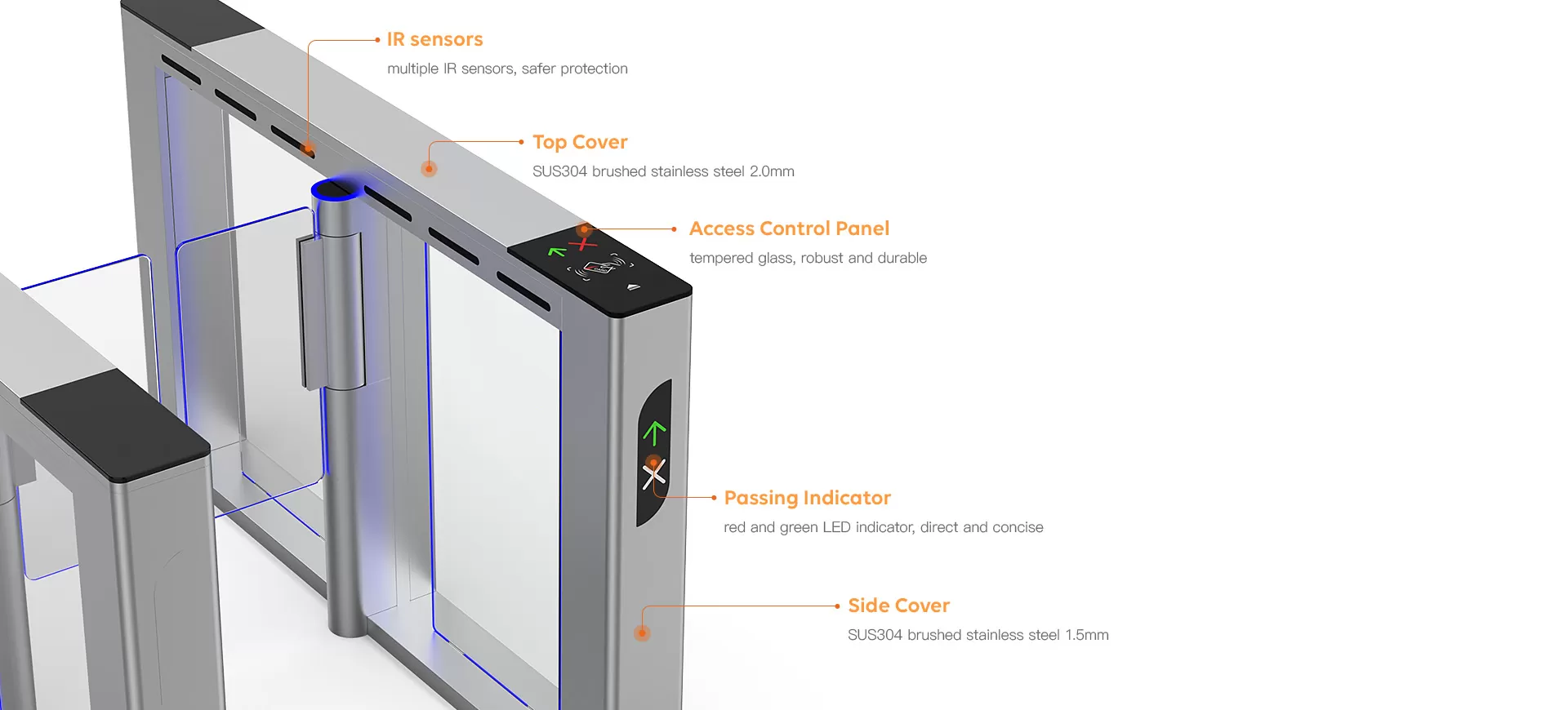

User-friendly Detail lntegration

Fine material to enhance the stablility performance

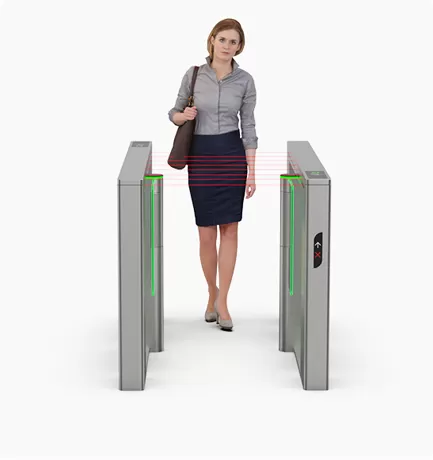

precise optical element to implement high security protection

subtly concealed guidance to make access control more effortless

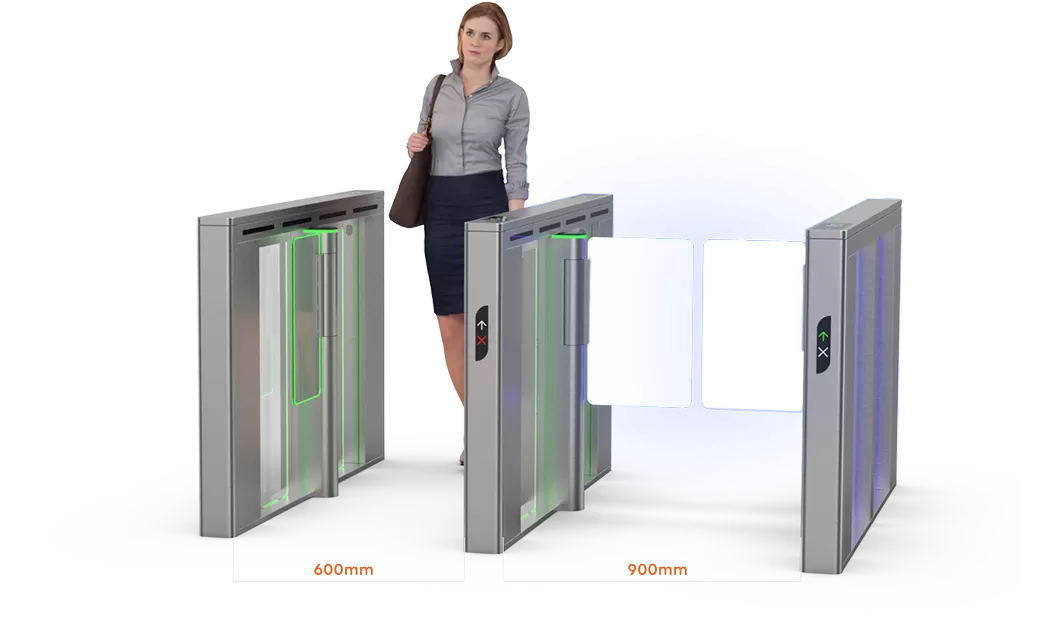

Optional Passage Width and Futuristic Lighting

Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).

Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.

Optional Passage Width and Futuristic Lighting

Physical Mechanism and Artificial Intelligent Algorithm

lntelligent Mechanism, DOOR Manufactured, Security with Ease.

Precise Servo drive unit coordinates with DOOR FOC control technology.

The motion track and drive force are controlled and positioned accurately by DOOR FOC Servo control algorithm and T-type route algorithm, steady and noiseless.

0.3s

Gate Open/Close fastest

≤0.2°

Running Deviation

≤55DB

Noise

≥20million times certified

MCBF

High Speed Chip and Al Algorithm Alliance

With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.

The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.

The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.

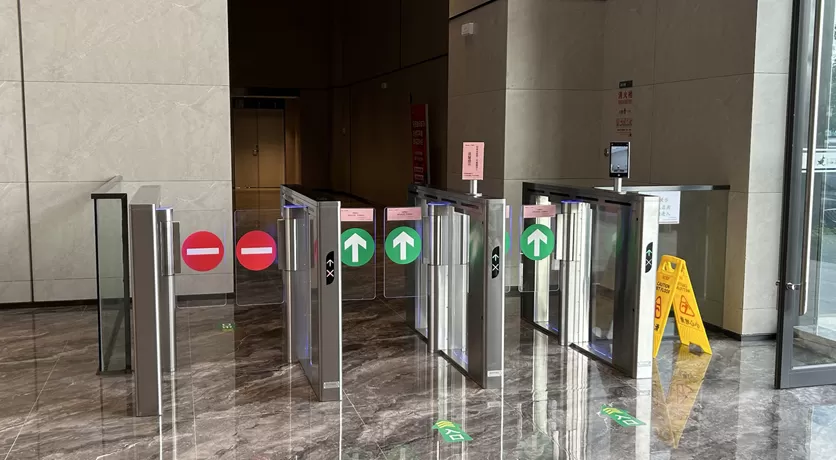

Details of DR.TD.6621B

SPEED GATE DR.TD.6621B
Physical Para.	Cabinet Material	SUS304 Stainless Steel
	Swing Panel Material	PMMA Acrylics/Plexiglass (Tempered Glass for Optional)
	Product Dimension	L1600W120H1000 mm
	IR Sensor	8 pairs
Electric Para.	Power Supply	AC220±10%V, 50±10%Hz
	Drive Motor	DC24V Servo Motor
	Power	100W(left/right),200W(middle)
	Comm. Protocol	Level Type/Pulse/RS485/RS232
	Input Interface	Relay(Dry Contact)
Passing Info.	Passage Indicator	Red/Green indicator+ Blue LED light strips
	Passing Direction	Uni-directional/Bi-directional
	Passage Width	600~900mm, adjustable
	Passing Speed	35~50 people/min
Performance	Gate Open Speed	Fastest 0.3s, adjustable
	Gate Open Angle	90°±5°
	Positioning Method	Servo Motor+Clutch+Encoder
Extras	Working Environment	Indoor, -25℃~70℃
	Relative Humidity	≤90%, No Condensation
	MCBF	20 Million Times Certified
	Noise	＜50dB
	IP Level	IP42

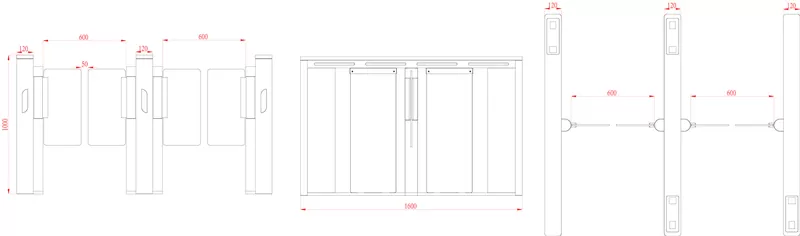

Dimension
