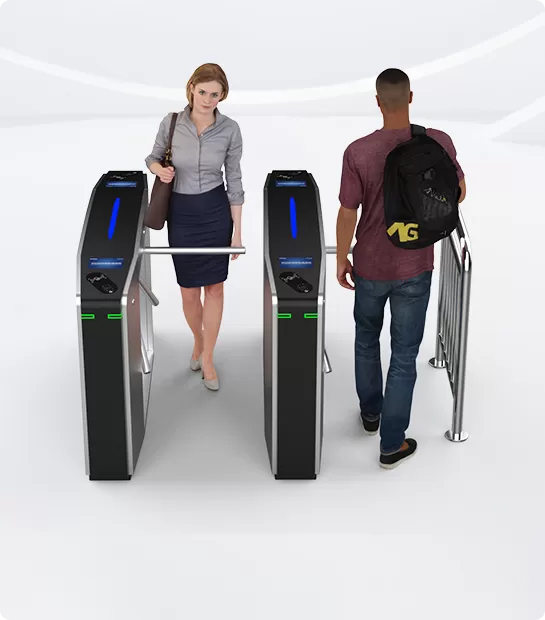

The DR.TD.6383 turnstile integrates high-precision SUS 304 stainless steel for durability, a next-gen BLDC motor with precision encoder for smooth operation, and an industrial-grade 32-bit ARM processor for intelligent control. Its modular design ensures easy installation, disassembly, and maintenance, reducing downtime. Supporting multiple access modes (face recognition, RFID, QR codes, etc.), it enables fast, seamless pedestrian flow in high-traffic areas such as metro stations, stadiums, and corporate buildings, combining speed, security, and reliability.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Fine SUS304 stainless steel cabinet case, rust-resistance and durable.

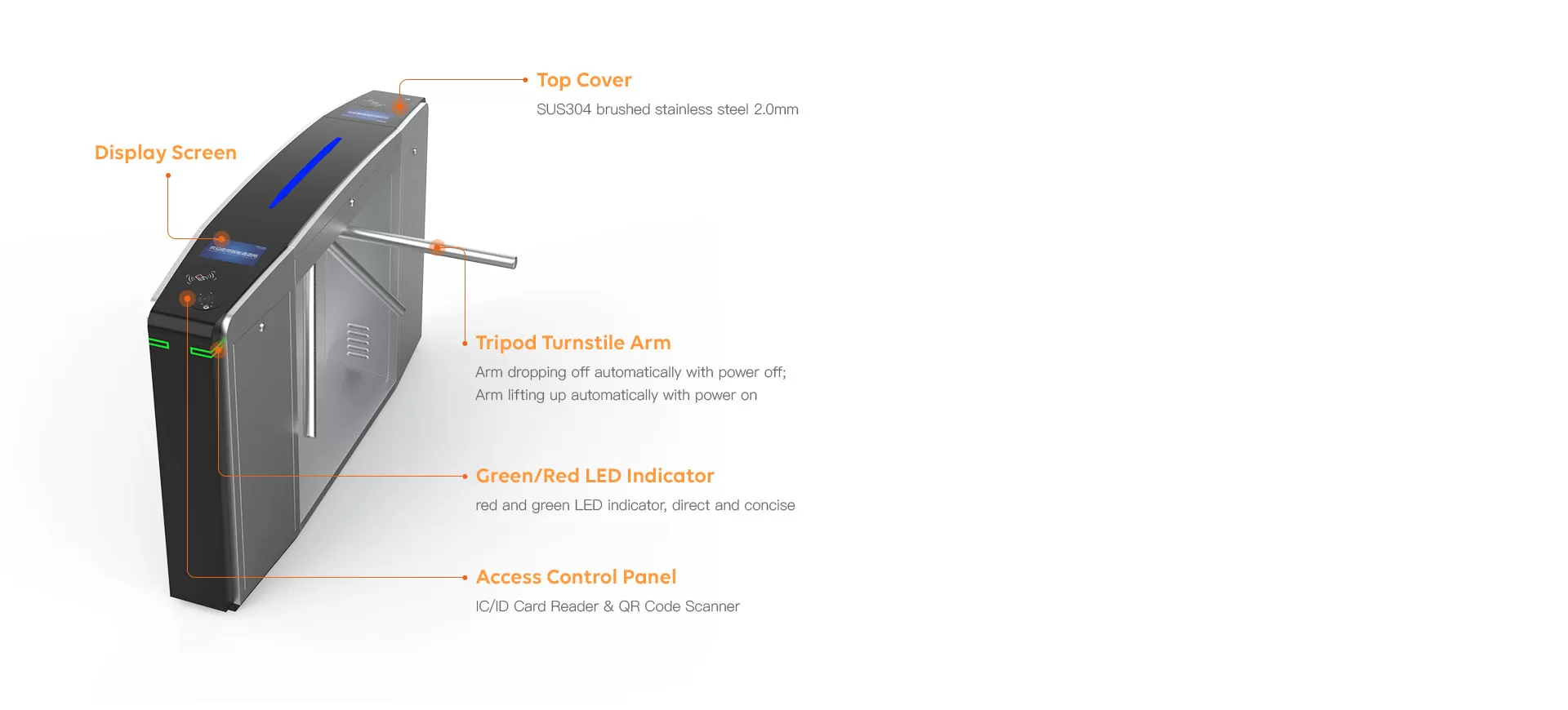

Various read & write devices integration, more intelligent and convenient.
Tripod turnstile arm dropping off automatically with power off to facilitate people evacuation.

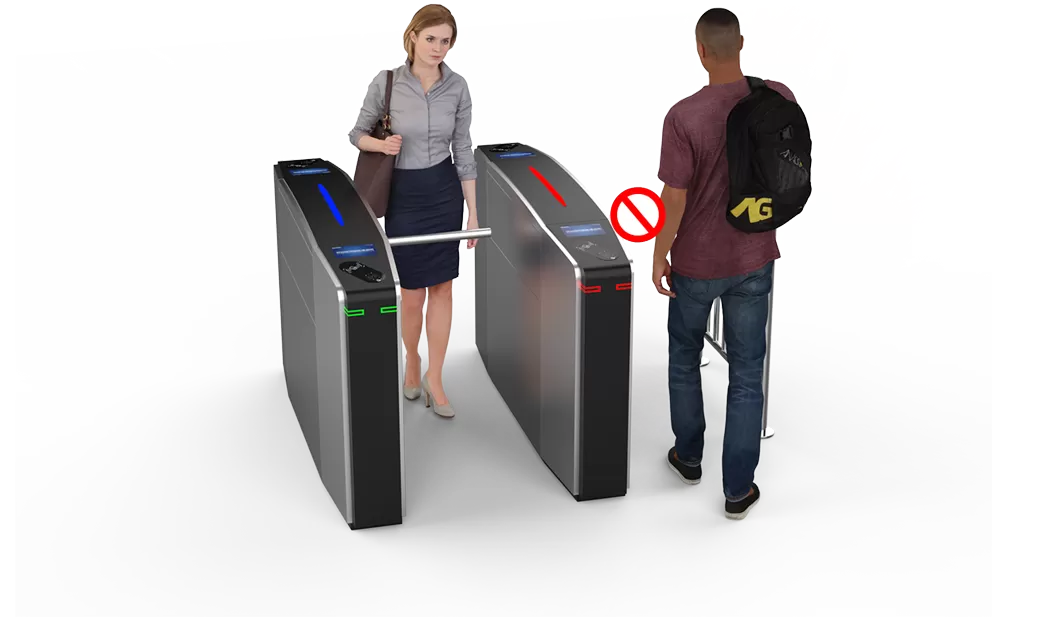

LED indicator function: green arrow and red cross display passing allowed or not.
Tripod turnstile arm: support arm lifting up automatically with power on and arm dropping off automatically with power off for pedestrian evacuation.
Arm dropping off automatically with power off; Arm lifting up automatically with power on.

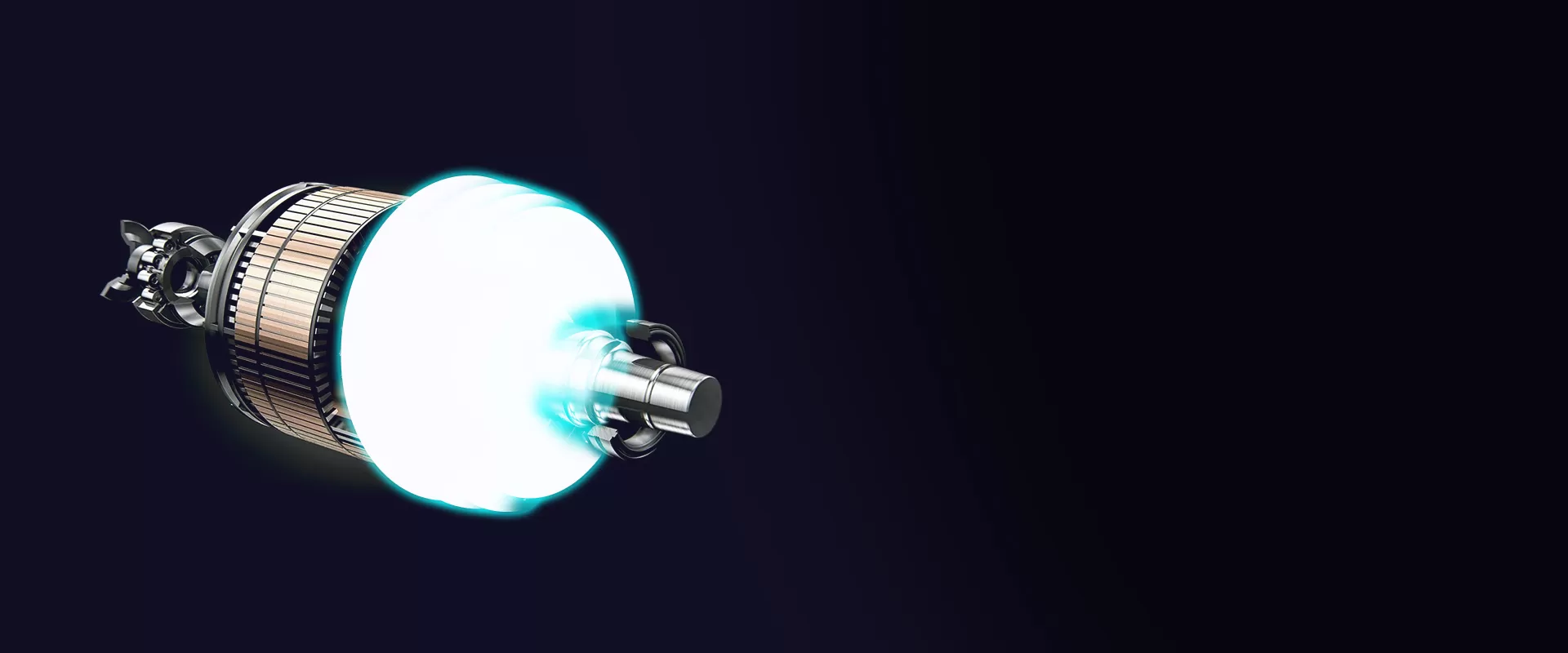

New generation of Brush-less Direct Current Motor with more stable operation, energy saving and high efficiency.
High-precision encoder for angle detection and control greatly improves the accuracy of swing panel positioning, steady and noiseless.
Low Consumption
Noiseless
Long Service Life
Steady Operation
MCBF
Industrial-grade 32 bit ARM processor with strong process ability and fast response speed.
RISC System, Small Size & Low Power Consumption
| TRIPOD TURNSTILE DR.TD.6383 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L1600*W280*H1000mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Brushless Motor DC 24V | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤550mm | |
Passing Speed | 30-35 people/min (IC card) | |
Performance | Gate Open Speed | Fastest 0.3s |
Positioning Method | Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 5 Million Times | |
Noise | ＜50dB | |
IP Level | IP42 | |

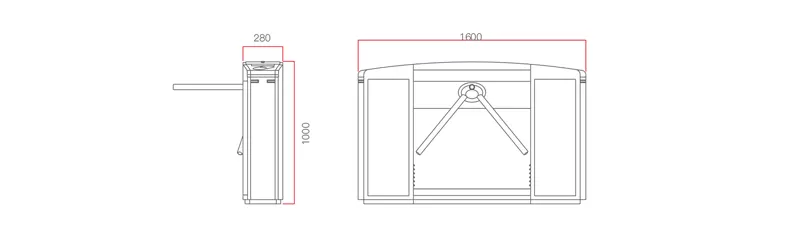

Dimension | ||
| ||
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
Support uni-directional and bi-directional passing to control pedestrian flow.
Suitable for station, port, travel spot exit and entrance.
Suitable for library, museum, stadium, theater etc ticket entrance.
Suitable for particular passage control.
Suitable for community, factory, office building etc access control area.
