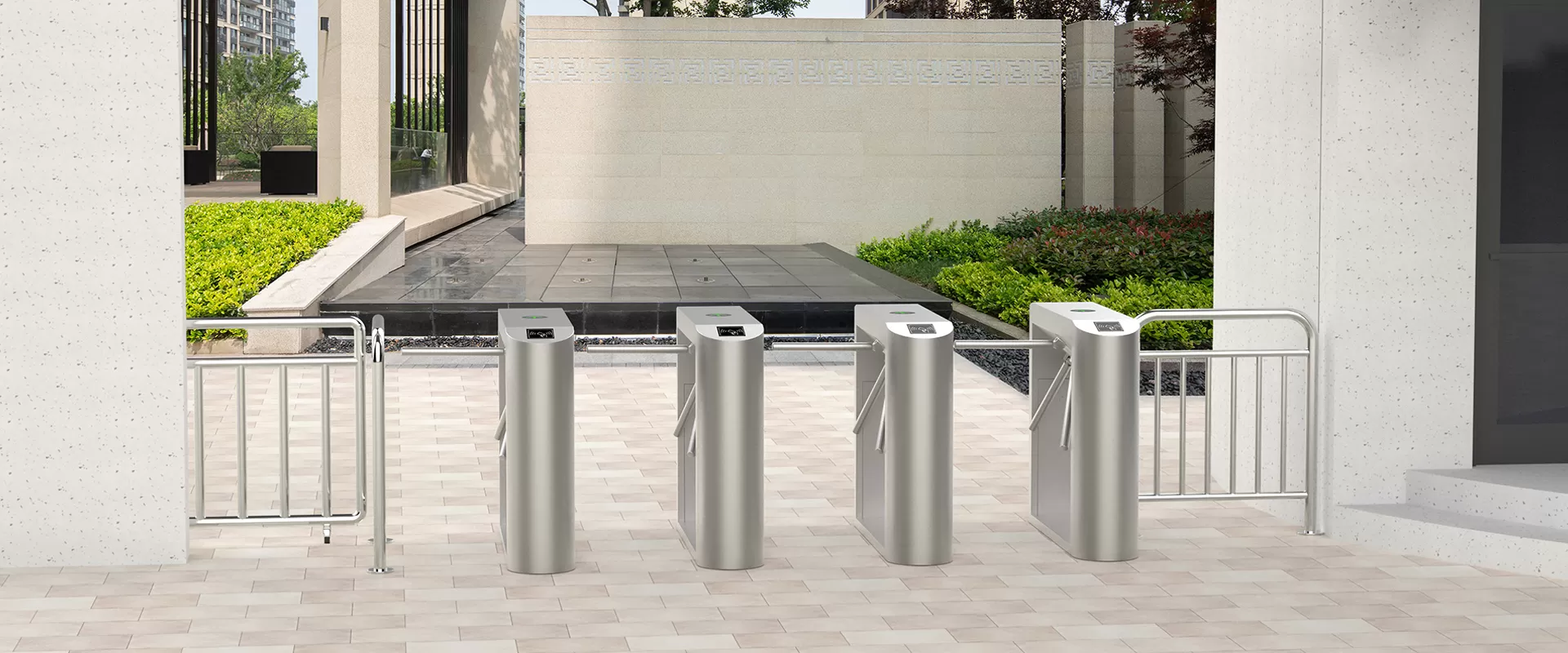

The DR.TD.6371X Swing Gate is a top-selling turnstile model, renowned for its compact, cost-effective, and ultra-reliable design. Compatible with multiple read/write devices (RFID, biometrics, QR codes, etc.), it enables intelligent, seamless access control for high-traffic areas. Its emergency fail-safe feature ensures the tripod arm drops instantly during power loss, enabling swift evacuation—effectively reducing congestion, optimizing pedestrian flow, and enhancing safety. Ideal for offices, transit hubs, and secured facilities, this turnstile combines efficiency, durability, and smart automation.
Modular structure, easy installation, disassembly and maintenance.
Stainless steel laser cutting, CNC bending and advanced processing technology to form an rigid structure, simple and concise.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance

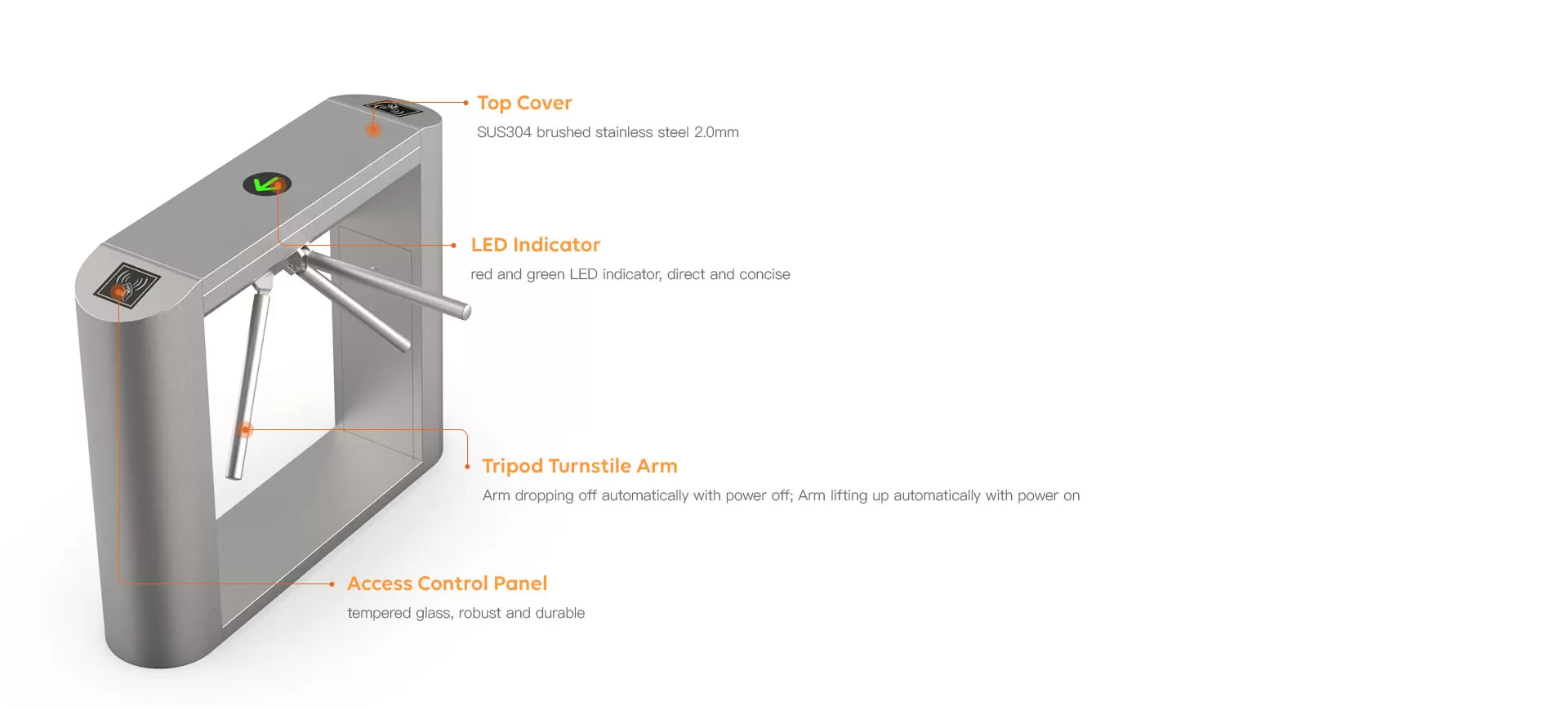

Fine SUS304 stainless steel cabinet case, rust-resistance and durable.

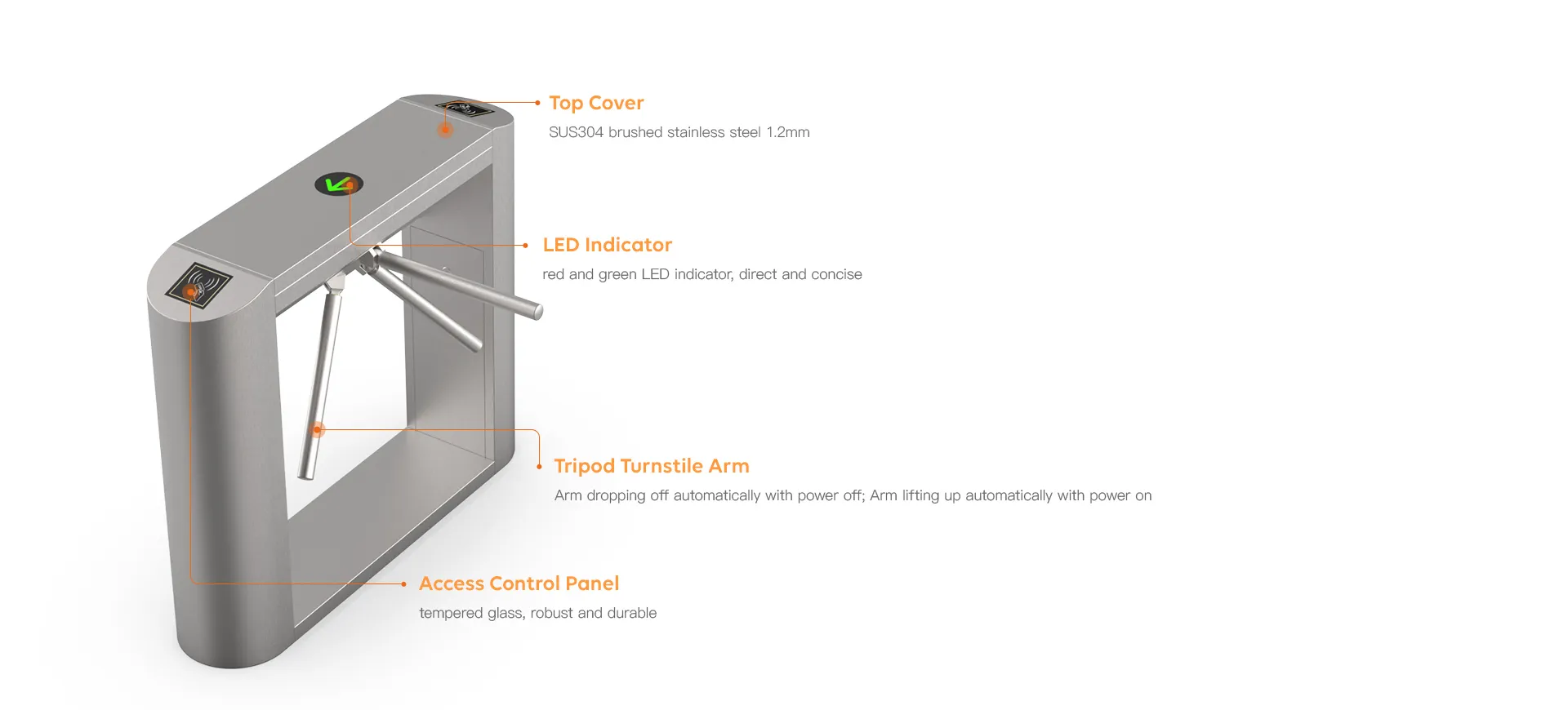

Various read & write devices integration, more intelligent and convenient.
Tripod turnstile arm dropping off automatically with power off to facilitate people evacuation.

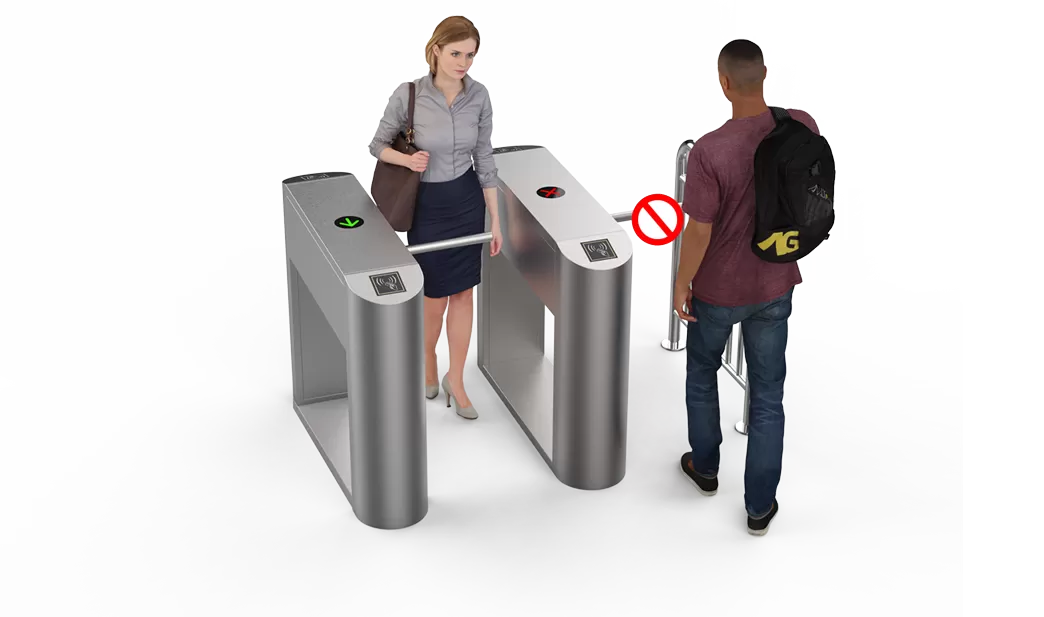

LED indicator function: green arrow and red cross display passing allowed or not.
Tripod turnstile arm: support arm dropping off automatically with power off for pedestrian evacuation.
Various electrical interface: realize RS485 remote control.
| TRIPOD TURNSTILE DR.TD.6371X | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Tripod Arm Material | SUS304 Stainless Steel | |
Product Dimension | L1200*W280*H1000mm | |
Electric Para. | Power Supply | AC110V/220±10%V, 50±10%Hz |
Drive Unit | Solenoid Valve | |
Comm. Protocol | RS485 | |
Input Interface | Dry Contact | |
Passing Info. | Passage Indicator | Red/Green indicator |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | ≤600mm | |
Passing Speed | 20 people/min (IC card) | |
Performance | Gate Open Speed | Fastest 1.5s |
Remote Distance | ≤1200m | |
Extras | Working Environment | Indoor/Outdoor, -15℃~60℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 3 Million Times | |
Noise | ＜50dB | |
IP Level | IP54 | |

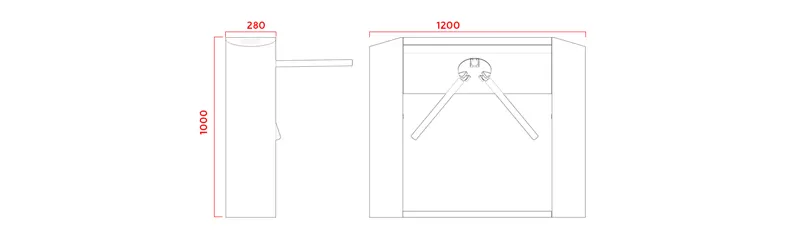

Dimension | ||
 | ||
Support uni-directional and bi-directional passing to control pedestrian flow.
Suitable for station, port, travel spot exit and entrance.
Suitable for library, museum, stadium, theater etc ticket entrance.
Suitable for particular passage control.
Suitable for community, factory, office building etc access control area.

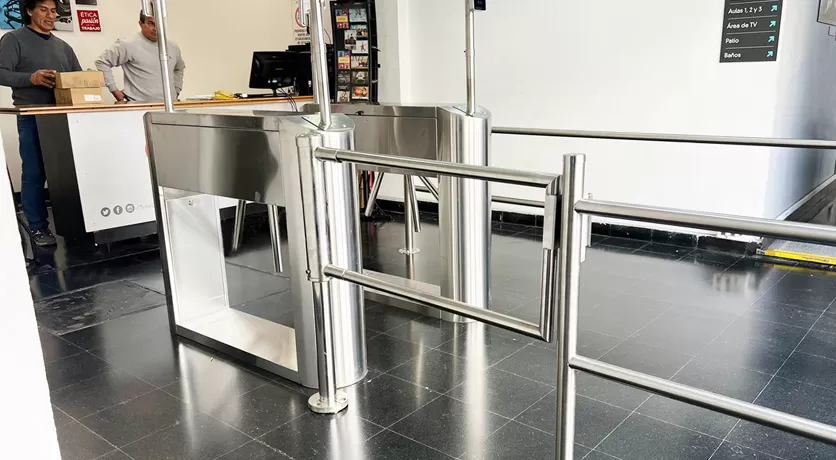

Argentina

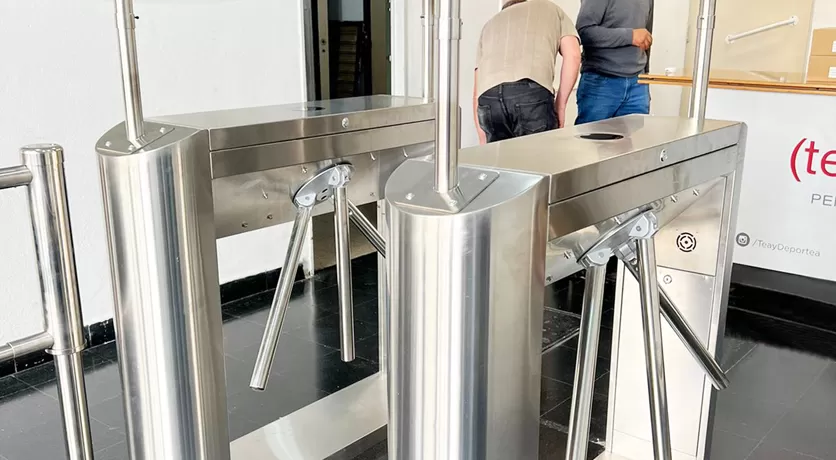

Argentina
