DR.TD.6626 Speed Gate ensures secure & seamless access control with SUS304 stainless steel, transparent panels, and AI-powered servo drive. Features adjustable passage width, multi-sensor anti-tailgating, and contactless authentication (facial recognition, QR, RFID)—perfect for high-traffic areas like offices, transit hubs & stadiums. Engineered for durability, low maintenance & smooth pedestrian flow.
Stainless steel laser cutting, CNC bending and advanced processing technology to form a rigid structure, simple and concise.
Brushed suS304 stainless steel to enhance the stability performance.

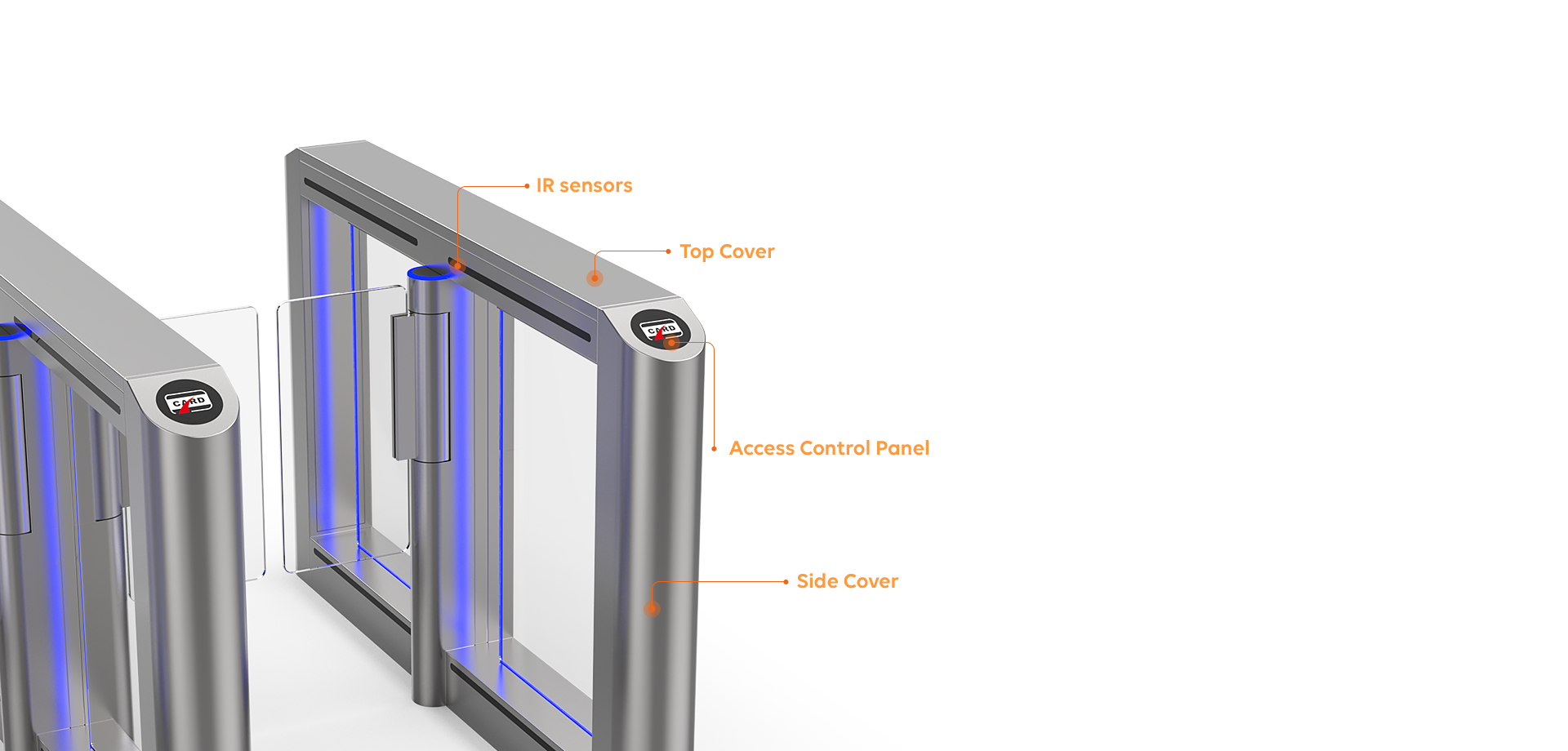

Two transparent swing panels are symmetrical and appears slim and weightless. Circular card reader panel forms an overall appearance at top covers.
Invisible lR sensors brings high security level protection.
Steel Laser Cutting
CNC bending
Corrosion Resistance
Abrasion Resistance
Fine material to enhance the stablility performance
precise optical element to implement high security protection
subtly concealed guidance to make access control more effortless
Passage Width: optional passage width from the standard width 600mm to the particular care width 900mm (for wheelchair users, groups, bulky cargo, baby carriage etc).
Lighting Guidance: red and green LED light signal passing guidance, direct and concise; blue ambient light strips along swing panel forming an overall lighting effect with modern aesthetics.
Intelligent Mechanism, DOOR Manufactured, Security with Ease.
Precise Servo drive unit coordinates with DOOR FOC control technology.
The motion track and drive force are controlled and positioned accurately by the DOOR FOC Servo control algorithm and the T-type route algorithm, which are steady and noiseless.
Gate Open/Close fastest
Running Deviation
Noise
MCBF
With high and reliable performance chip, Al algorithm controls mechanism effectively running fast and steady to achieve soft motion curve, accurate positioning, steady start&stop,anti-pinch and top-speed synchronization etc.
The alliance brings rapid data capture and feedback as well as monitoring mechanism running status and analyzing data.
The Servo drive unit adopts triple loop PID algorithm to detect the running current torque, speed and current position in real time.
| SPEED GATE DR.TD.6626 | ||
Physical Para. | Cabinet Material | SUS304 Stainless Steel |
Swing Panel Material | PMMA Acrylics/Plexiglass (Tempered Glass for Optional) | |
Product Dimension | L1600*W180*H1020mm | |
IR Sensor | 8 pairs | |
Electric Para. | Power Supply | AC220±10%V, 50±10%Hz |
Drive Motor | DC24V Servo Motor | |
Power | 100W(left/right),200W(middle) | |
Comm. Protocol | Level Type/Pulse/RS485/RS232 | |
Input Interface | Relay(Dry Contact) | |
Passing Info. | Passage Indicator | Red/Green indicator+ Blue LED light strips |
Passing Direction | Uni-directional/Bi-directional | |
Passage Width | 600~900mm, adjustable | |
Passing Speed | 35~50 people/min | |
Performance | Gate Open Speed | Fastest 0.3s, adjustable |
Gate Open Angle | 90°±5° | |
Positioning Method | Servo Motor+Clutch+Encoder | |
Extras | Working Environment | Indoor, -25℃~70℃ |
Relative Humidity | ≤90%, No Condensation | |
MCBF | 20 Million Times Certified | |
Noise | ＜50dB | |
IP Level | IP42 | |

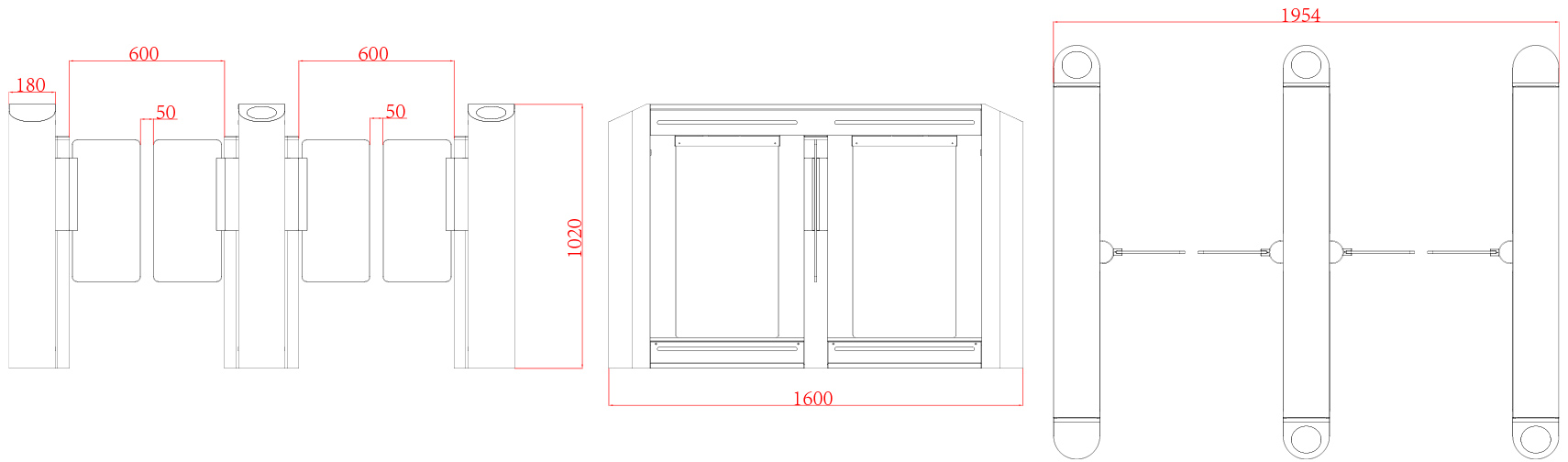

Dimension | ||
| ||
Multiple lR sensors and advanced anti-tailgating technology implement triple protection.
Card Reader Support
passing by uni-directional or bi-directional card swiping
QR code Scanner Support
passing by QR code scanning
Face Recognition Support
passing by face recognition scanning
